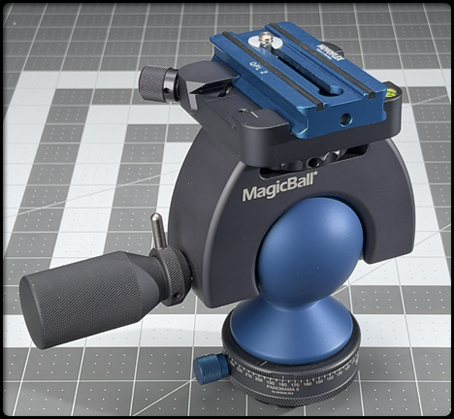

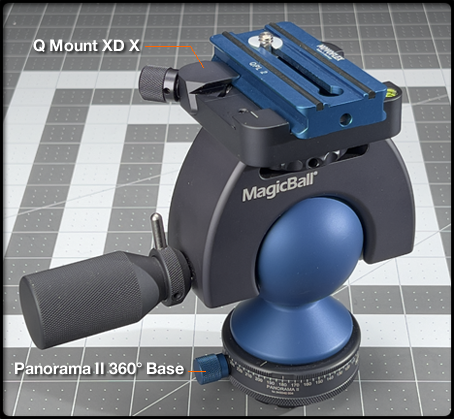

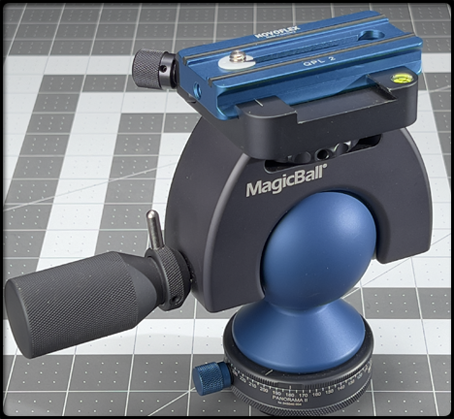

1 • Novoflex MagicBall MB The Big One
The Novoflex MagicBall (MB), often referred to as "The Big One," is the largest and most robust model in the MagicBall series, specifically engineered to support heavy equipment such as medium format cameras and super-telephoto lenses. It is distinguished by its unique inverted design where the ball is fixed to the tripod and the housing moves, providing an extensive 120∘ positioning rangein virtually any plane.
• Load Capacity: up to 22 lbs (10 kg)
• Offers instant access to 85% of a sphere
• Height: 4.13 inches (10.5 cm)
• Ball Diameter: 2.36 inches (60 mm)
• Weight: approximately 2 lbs (0.9 kg).

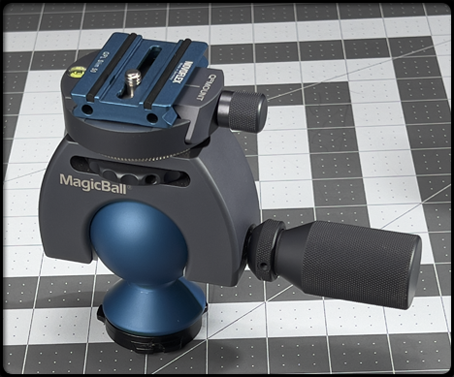

2 • Novoflex MagicBall 50
The Novoflex MagicBall 50 (SKU: MBAL20) is a medium-sized, uniquely designed ball-and-socket head supporting up to 16 lbs (7.3 kg). It features a 50mm ball diameter, 3.54" (90mm) height, and weighs 1.35 lbs (610g), offering integrated friction control and a 3/8"-16 tripod mount, ideal for versatile positioning with a 120-degree range.
• Load Capacity: 16 lbs (7.26 kg)
• Height: 3.54" (90 mm)
• Weight: 1.35 lbs (610 g)
• Ball Diameter: 1.97" (50 mm)
• Base Diameter: 1.65" (42 mm)
• Tripod Mount: 3/8"-16 female thread

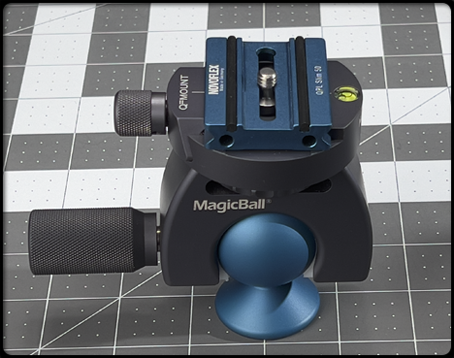

3 • Novoflex MagicBall Ballhead Mini
Novoflex offers several compact, high-quality German-engineered mini ballheads, primarily the MagicBall Mini (11 lbs load) and the BALL19/19P (6.6 lbs load). They are designed for portability, often used on tabletop tripods, monopods, or as accessory mounts for cameras, flash units, and mics, featuring durable metal construction and a 120° positioning range.
• Load Capacity: 11 lbs (5 kg)
• Weight: 0.73 lbs (approx. 330g)
• Height: 2.95" (75mm)
• Ball Diameter: 1.57" (40mm)
• Mounting: 1/4" and 3/8"

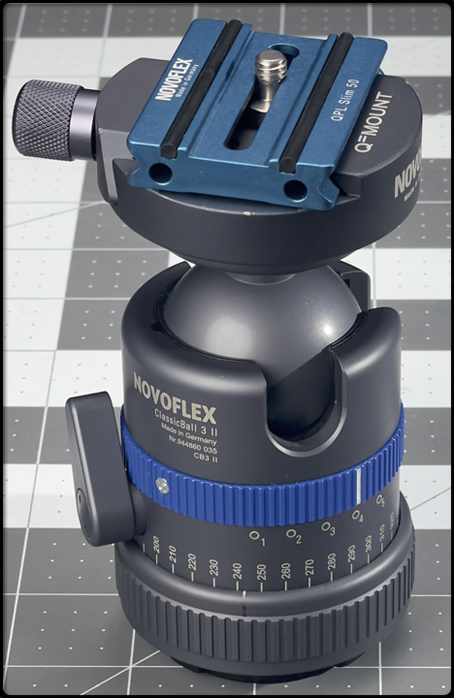

4 • Novoflex Classic III v2 Ballhead
The Novoflex ClassicBall 3 II (CB3 II) is a high-precision, German-engineered tripod ball head featuring an all-metal design with advanced polymer materials and a matte titanium finish. It is designed for both amateurs and professionals, with a distinct feature allowing the ball head to be mounted upside down for use as a panorama panning base.
• Load Capacity: 8 kg (17.64 lbs)
• Weight: 505 g (1.11 lbs
• Height: 95 mm (3.74 in)
• Base Diameter: 60 mm (2.36 in)
• Advanced Friction Control
• 3-90° Notches: Includes three 90-degree notches.
• No-Shift Locking:
• Dual-Mount Option: Can be inverted
• Cold-Weather Friendly: Eeasily operated while wearing gloves.
5 • Novoflex MagicBall Ballhead Mini 25
Novoflex offers several compact, high-quality German-engineered mini ballheads, primarily the MagicBall Mini (11 lbs load) and the BALL19/19P (6.6 lbs load). They are designed for portability, often used on tabletop tripods, monopods, or as accessory mounts for cameras, flash units, and mics, featuring durable metal construction and a 120° positioning range.
• Load Capacity: 11 lbs (5 kg)
• Weight: 0.73 lbs (approx. 330g)
• Height: 2.95" (75mm)
• Ball Diameter: 1.57" (40mm)
• Mounting: 1/4" and 3/8"

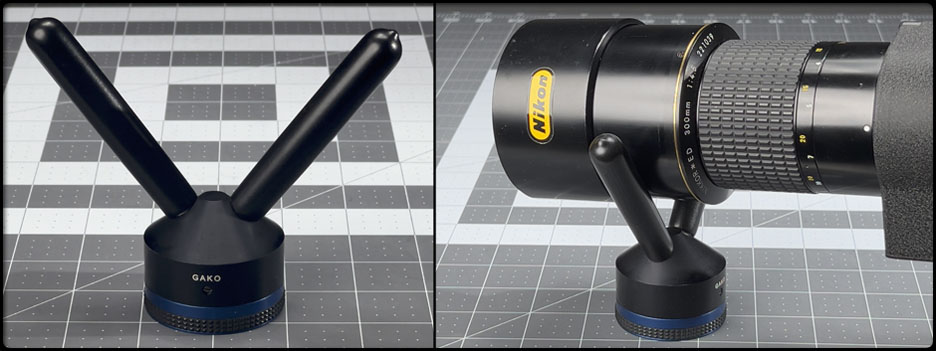

6 • Novoflex V GAKO
The Novoflex GAKO Forked Joint "V" Shaped Tripod Head is a specialized support accessory designed for long telephoto lenses and spotting scopes. It allows the equipment to rest in a "V" fork, providing stability while maintaining the freedom to quickly lift or move the gear without being rigidly attached to a traditional head.
• Rotational Freedom: Offers a full 360° rotation.
• Fork Width: 125 mm (4.92").
• Total Height/Diameter: Approximately 110 mm (4.3").
• Weight: Extremely lightweight at 210 g (0.46 lbs).
• Mounting: 3/8"-16

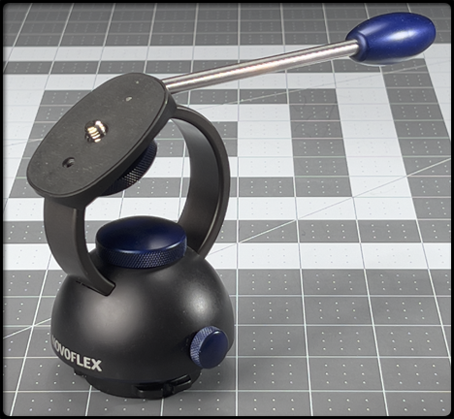

7 • Novoflex D in O Pan and Tilt Head
The Novoflex D in O (also known as the DinO) is a specialized 2-way pan and tilt head recognized for its compact design and unique single-lock mechanism. Its name is derived from its literal design—a "D" shape nested inside an "O".
• Single-Turn Locking: Both horizontal and vertical panning axes.
• Weighing roughly 0.7 lbs while supporting up to 11 lbs.
• Load Capacity: Listed as 6.6 lbs (3 kg) to 11 lbs (5 kg)
• Height: 3.5 inches
• Weight: ~0.7 lbs (approx. 300 g)
• Mounting: 3/8"-16
• Novoflex Panorama
8 • Novoflex 360° VR Spherical Panorama System
• High stability with low weight
• Sensitive friction control
• 360° panoramic rotation
• Novoflex "D in O" Pan & Tilt Head (Silver) - Supports 6.60 lb (2.99 kg)
• Removable Video Pin

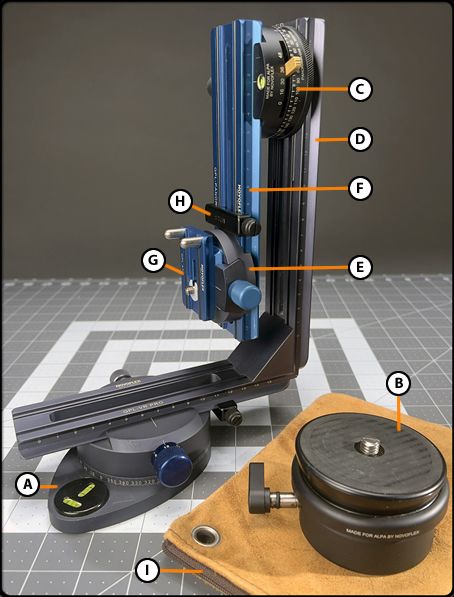

9 • Novoflex VR II 360° Panorama Base
The Novoflex VR-System 6/8 is a professional-grade panoramic head system specifically optimized for fisheye lenses to create 360° spherical panoramas quickly. The "6/8" designation refers to the system's ability to facilitate a complete spherical capture (360° x 180°) in just 3 to 8 overlapping shots.
• Fisheye Optimization: Designed for fisheye lenses and full-frame cameras, reducing the number of images needed for a full sphere.
• Dual Click-Stop Bases: Features two panorama bases for horizontal and vertical rotation around the lens's nodal point.
• Standard click-stops at 45° and 60°.
• Additional increments of 30° (12 stops), 36° (10 stops), 90°, and 120° are possible by using every second stop or specific settings.
• Supports professional DSLRs and heavy camera equipment.
• Integrated spirit levels on each base are positioned to be visible from above and do not intrude into the image.
• Nodal Point Adjustment: Allows for 150mm of adjustment along the optical axis to ensure parallax-free rotations.

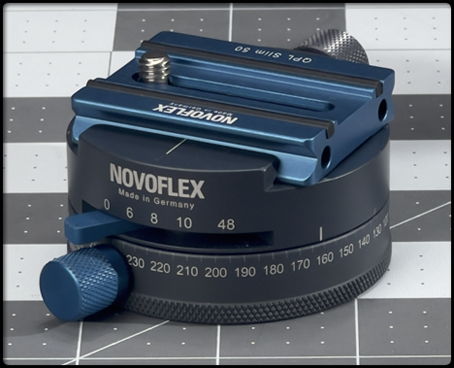

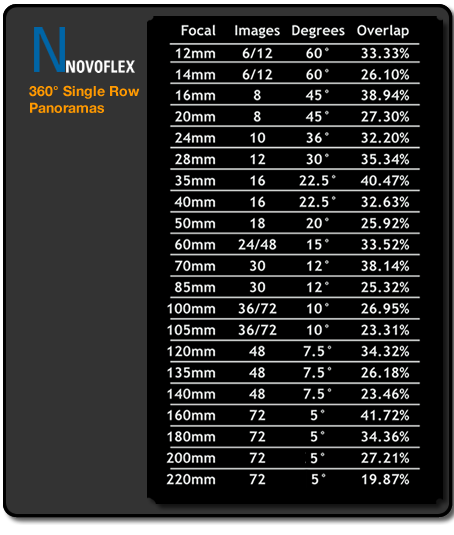

10 • Novoflex Panorama 48 Base
The Novoflex Panorama Plate II 360 Base (also referred to as Panorama II) is a compact, high-precision panning base designed for single-row panoramic photography. It allows for smooth, reproducible 360° horizontal rotation and is commonly used as a foundational component in more complex rigs like the Novoflex VR-System II.
• Weight 140g (4.9 oz)
• Dimensions 3 x 2.4 inches (7.5 x 6 cm)
• High stability with low weight
• Sensitive friction control
• 16 stops = 22.5 degees • 30 stops = 12 degees<
• 36 stops = 10 degees • 48 stops = 7.5 degees
• 360° Stepless rotation
• Novoflex Macro

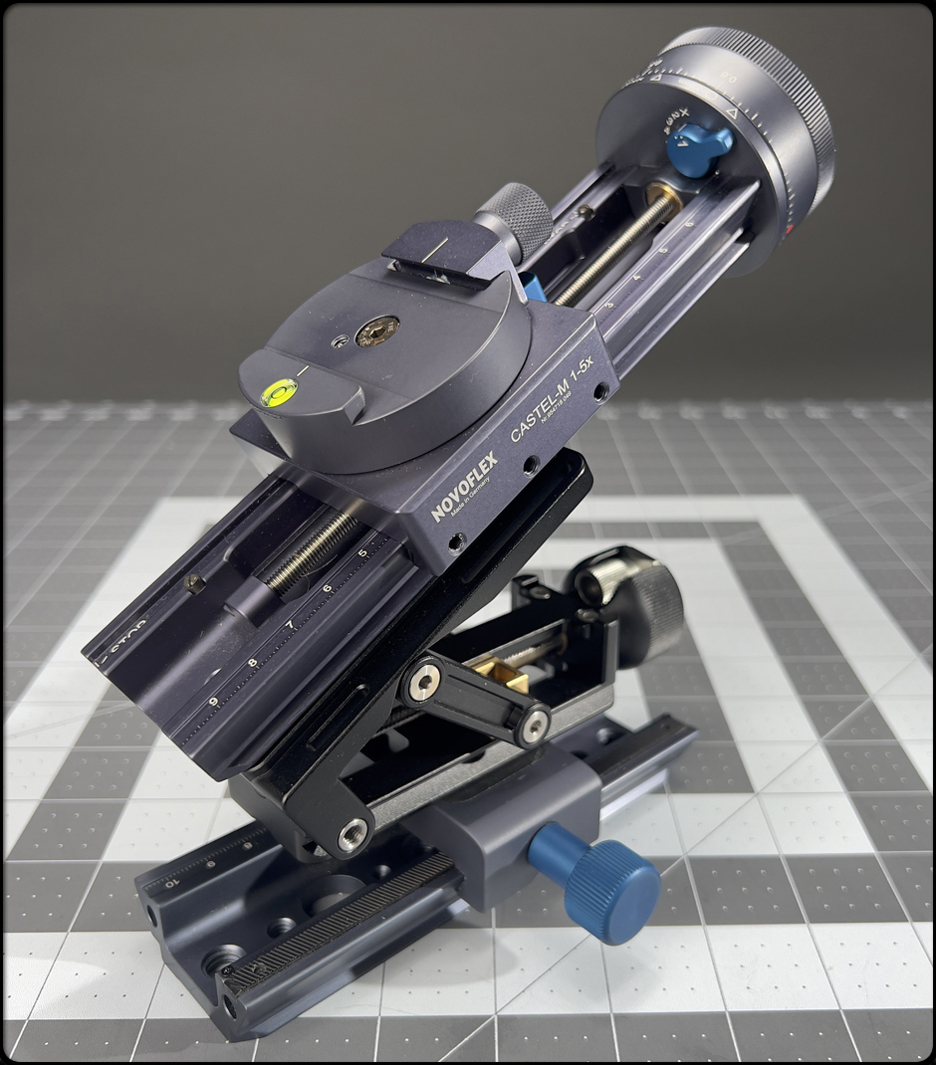

11 • Novoflex Castel-M Macro Focusing Stacking Rack
The Novoflex Castel-M is a precision manual focusing rack specifically engineered for high-magnification macro photography (1:1 to 5:1) and focus stacking. It is designed to provide mechanical accuracy similar to motorized rails but in a more portable, manual format.
Key Features
• Precision Click Stops: Indexing steps 2:1, 3:1, 4:1, and 5:1.
• One full rotation of the focus wheel moves the camera 0.8 mm.
• X mode 10-micron increments.
• Magnification Range: 1:1 to 5:1.
• Load Capacity: Up to 8.8 lbs (4 kg).
• Dimensions: 8.7" x 2.6" x 2.2" (22.1 x 6.6 x 5.6 cm).
• Weight: 1.5 lbs (680 g).

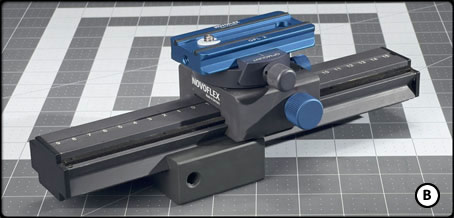

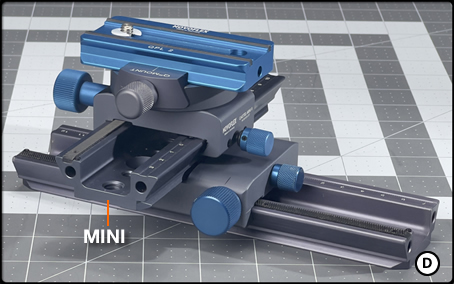

12 • Novoflex Castel M System Focusing Racks
• A: Castell M
• B: Castel Mini
• C: Dual Focus Rack Q
The Novoflex Q-System focusing racks (CASTEL series) are high-precision tools designed for macro and stereo photography, offering fine-tuned positioning and Arca-Swiss compatibility.

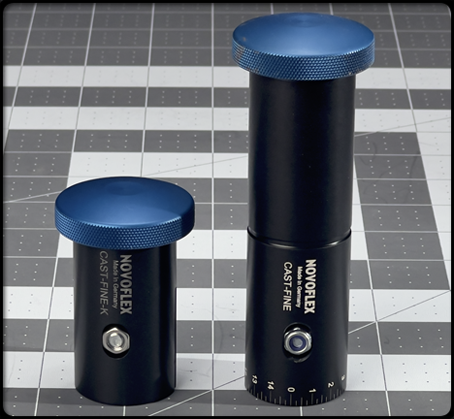

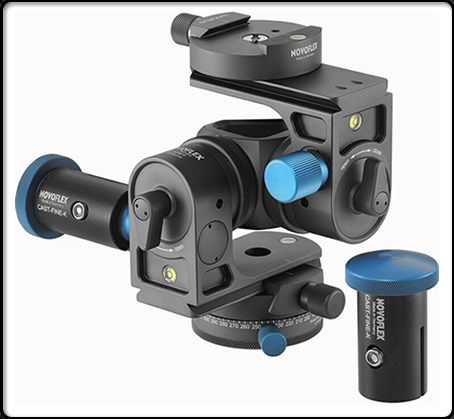

13 • Novoflex Fine Adjustment Handles
• A: Fine Adjustment Handle
• B: Fine Adjustment Handle KOPF2
• Precision: Allows movements as fine as 0.25mm (a quarter millimeter).
• Llaser-engraved cm-scaling
• Novoflex Level

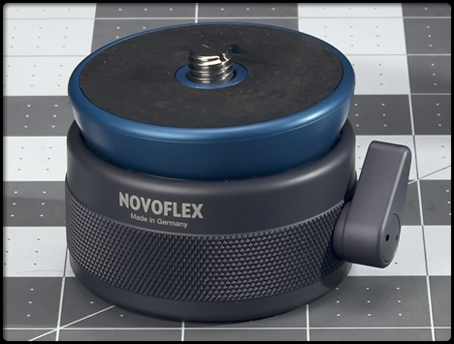

14 • Novoflex Magic Balance 60mm Leveling Base
• The Novoflex Magic Balance is a compact, high-precision leveling head designed to quickly level cameras, gimbal heads, or panoramic systems on uneven terrain without adjusting tripod legs. It features an ingenious half-ball-in-socket design that allows for smooth, one-handed operation using a single locking lever.
Standard Compact Version
• Tilt Range: 20° in any direction.
• Load Capacity: 10 kg (22 lbs).
• Weight: 270 g (0.6 lbs).
15 • Novoflex Magic Balance 75mm Leveling Base
Heavy-Duty Version
• Tilt Range: 15° in any direction.
• Load Capacity: Supports up to 65 kg (143 lbs).

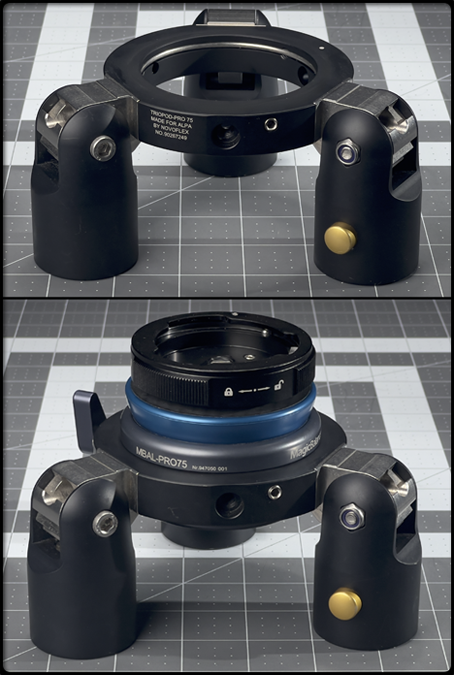

16 • Novoflex Alps TriPod-Pro 75 Tripod Leveling Base
The Novoflex TrioPod PRO75 (often associated with ALPA for high-end systems) is a modular tripod "spider" base designed for heavy professional gear. It features a massive 143 lb (65 kg) load capacity and serves as the core of a customizable system where you can swap legs and top attachments depending on your shoot.
• Adjustable Leg Angles: 23°, 45°, 65°, 87°
• Specialized 155° angle for walls.
• 43° inverted angle tripod can be flipped for macro or low-angle .
• Compatibility:TrioPod and QuadroPod systems..
• Accessories: Goosenecks, monitors, or lights directly to the spider.
• Max Load Capacity 143 lbs (64.86 kg)
• Base Weight 2.78 lbs (1.26 kg)
• Dimensions 5.3" x 3" (13.5 x 7.5 cm)

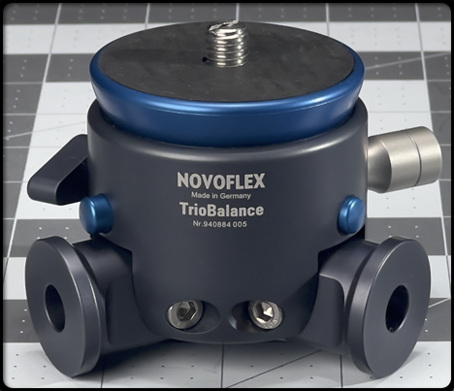

17 • Novoflex TrioPod 60 Tripod Leveling Base
The Novoflex TrioPod system is a modular tripod solution characterized by its interchangeable leg system and precise German engineering. While "TrioPod- 60" often refers to the TrioPod Base's 60mm diameter, the specific leveling variant is the TrioBalance Tripod Base. This base is specifically designed for quick leveling on uneven terrain without adjusting tripod legs.
• Integrated leveling head that allows for 15˚ adjustments
• Adjustable Leg Angles: at 20˚, 40˚, 60˚ and 87˚.
• 2.4x3 in (6x7.5 cm) Weight: 470g (1.04 lbs)
18 • Novoflex TriPod 60 Tripod Non-Leveling Base
• Adjustable Leg Angles: 20°, 40°, 60°, and 90° (or 87° on some variants) .
• Lightweight Build: The base itself weighs approximately 11.1 oz (314.68 g).

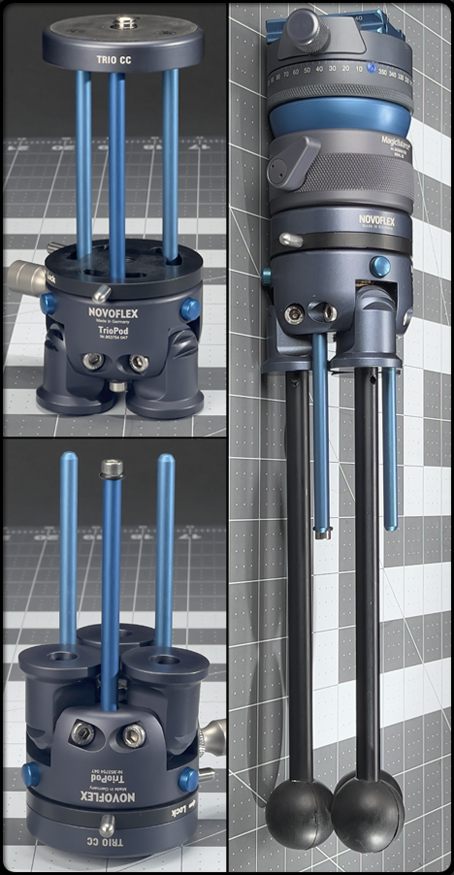

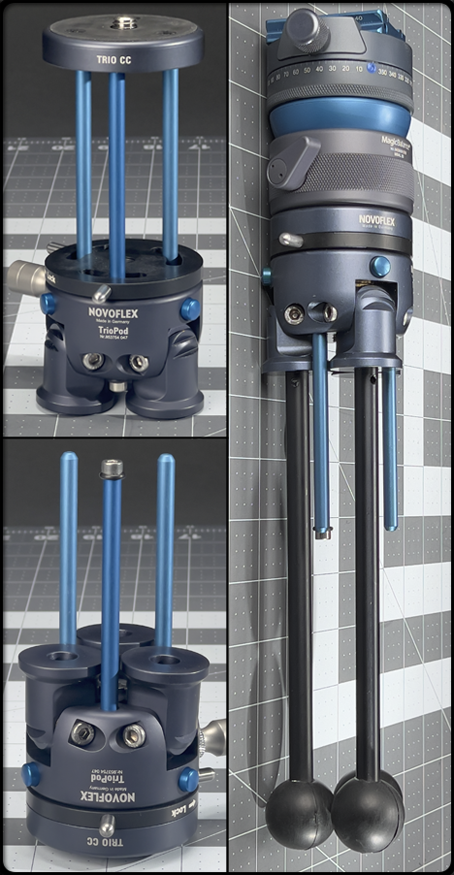

19 • Novoflex Trio CC Height Adjustment
This Center Column from Novoflex is for their TrioPod tripods. It attaches to the TrioPod base and gives you an additional 3.15" of working height.
Novoflex tripod center columns utilize different height adjustment mechanisms depending on the specific model and tripod system you are using. Generally, smaller units use a manual sliding mechanism with a locking disk, while professional systems use a geared riser with a lever.
• This column is simply inserted from the top into the TrioPod base.
• Locking: Height adjustment is secured at any point and locks the column.
• Height Range: Adds approximately 3.15" (8 cm) of working height.

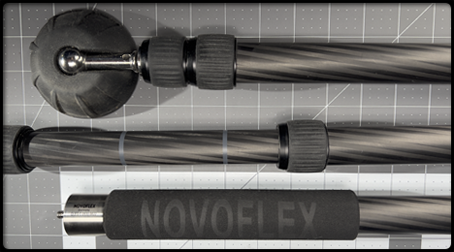

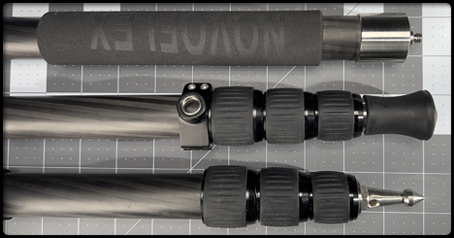

20 • Novoflex Q Leg Carbon Fiber Tripod Leg Sets
• Novoflex QLEG A2830 TrioPod 3-Section Set
• Novoflex QLEG C2840 TrioPod 4-Section Set
Novoflex's A2830 SET TrioPod 3-Section Carbon 3-Piece Legs Set is designed for use with the TrioPod flexible camera support system which is comprised of different bases and leg components.
Novoflex's C2840 SET TrioPod 4-Section Carbon 3-Piece Legs Set is designed for use with the TrioPod flexible camera support system which is comprised of different bases and leg components.

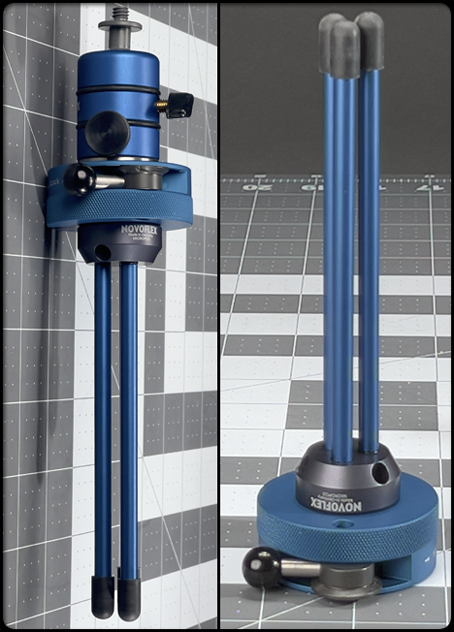

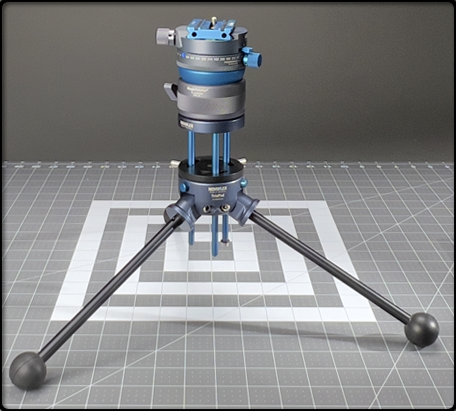

21 • Novoflex MicroPod + Mini Connect Base
The Novoflex Micropod is an ultra-compact, professional-grade mini tripod designed for tabletop and location photography. Often nicknamed the "David" of tripods, it is remarkably lightweight at roughly 1.76 oz (50 g) yet can support equipment up to 5 lbs (2.25 kg)—including heavy DSLRs and mirrorless cameras.
• Dimensions: 2.8 inches (7 cmfolded length of 5.4 inches (13.7 cm).
• The three aluminum legs push into a hemispherical base using "O" rings.
• Dual Functionality: When the legs are folded together.
• Novoflex QPL
22 • Novoflex VR Slant
he Novoflex VR-System SLANT is a specialized panoramic head designed for creating high-quality spherical panoramas quickly, particularly when using a monopod. It is engineered specifically for fisheye lenses with a diagonal image angle of 180°, allowing you to capture a full 360x180 panorama with just 3 to 4 overlapping exposures.
• The camera is mounted at a 60∘horizontal angle and can be tilted vertically up to15∘ This design captures the zenith (the top of the sphere) without needing a separate shot.
• Monopod Optimization: While it works on tripods, its compact design is ideal for monopod use, making it popular for virtual tours, travel, and reportage photography where speed and mobility are essential.
• Lenses: Works best with fisheye lenses like the Sigma 8mm.
• Mounting: Uses a Q-Mount (Arca-compatible) quick-release system for reproducible rotation around the lens's entrance pupil.
23 • Novoflex Flash-Griff Bracket
The Novoflex Flash-Griff Bracket (also known as the FLASH-GRIFF) is a professional-grade flash mounting system designed to improve lighting control and handling for both digital and film photography. It is particularly favored by macro and portrait photographers for its stability and balance.
• 9.8" (25 cm) baseplate w
•Arca-style dovetail botto
•The padded grip can be unscrewed
• Detachable Ball Heads • 450g
24 • Novoflex QPL Base Arca Clamp
• Manual Locking
• Safety Mechanisms:Feature a safety pin.
• Rapid Threading with just a fraction of a turn.
• Compatibility: Arca-Swiss compatible.

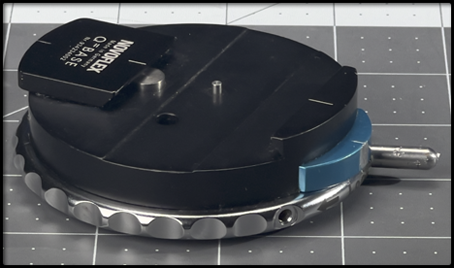

• Novoflex QPL Automatic Base Arca Clamp
Placing the camera or lens into the clamp results in a positive snap.
•One-handed operation
•Accepts all Arca-type quick release plates
•3/8"-16 & 1/4"-20 Threaded base holes
•Allen-wrench activated anti-twist pin
•Four locations for screw-in pin for knurled locking ring
25 • Novoflex QP Vertikal L
The Novoflex QPL-VERTIKAL (often associated with the "QP" designation in the QuadroPod system) is a heavy-duty, German-engineered L-bracket designed for larger DSLR and mirrorless cameras. It allows for rapid transitions between landscape and portrait orientations without losing the optical axis or needing to re-adjust the tripod head.
• Dimensions: 133 x 133 mm (5.23 x 5.23 inches).
• Weight: Approximately 175 g (0.4 lb).
• Arca-Swiss compatible on both axes.
26 • Novoflex QPL Arca Plates
• QPL 235mm Panorama with Scale
• QPL 150mm Panorama with Scale
• QPL-SLIM-25
• QPL-2 - 84mm
• QPL-3 - 120mm
• QPL-4 - 155mm
• Novoflex Adapters

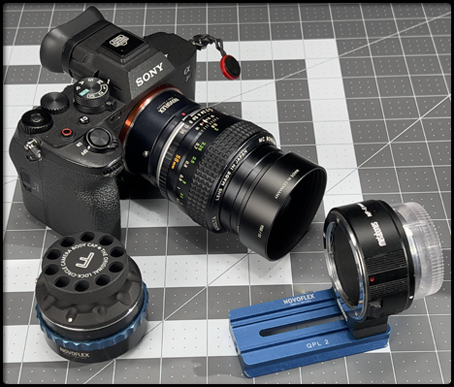

27 • Novoflex to Sony E Adpaters
Novoflex produces a comprehensive range of high-precision, manual lens adapters specifically for Sony E-mount (NEX/Alpha) cameras. These German-engineered adapters are known for exceptional build quality and precise flange focal distance, ensuring accurate infinity focus. Because they are purely mechanical, these adapters do not support autofocus or electronic aperture control from the camera.
• Nikon F Mount (NEX/NIK)
• Canon FD (NEX/CAN)
• Minolta MD (NEX/MD
• Pentax PK (NEX/CO)
• M42 Screw Mount (NEX/CO)
28 • Novoflex A-Stat Lens Mount
• Adapter tripod collar for NOVOFLEX lens adapters and Nikon F lenses
• Built-in NOVOFLEX Q-System mounting base ARCA
• Rotate from landscape to portrait orientation.
• Inner diameter: 59mm Clamping width: 8.5mm
• Novoflex Other:

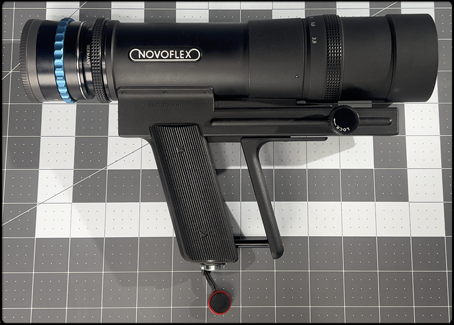

29 • Novoflex Pigriff-B Grip with Noflexar 400mm PK
The Novoflex PIGRIFF-B is a specialized pistol-grip rapid-focusing device designed to facilitate high-speed sports and wildlife photography. When paired with the Noflexar 400mm f/5.6 lens, it forms a "follow-focus" system that allows photographers to track moving subjects by squeezing a spring-loaded trigger rather than turning a traditional focus ring.
• The follow-focus system was first introduced in 1955, revolutionizing action photography before the advent of autofocus.
• Manufacturer: Novoflex is a German company founded in 1948 by Karl Müller.
• The "B" Series: The PIGRIFF-B version (introduced around the mid-1960s) improved upon earlier screw-mount versions by using quick-change bayonet fittings at both ends. This allowed for rapid interchanging of different lens heads (280mm, 400mm, 640mm) and camera adapters for nearly 40 different camera systems.
Noflexar 400mm f/5.6 Lens Specifications
• Optical Design: Achromat design with 2 elements in 1 group.
• Aperture Range: 5.6 to 32
• Aperture Blades: 24 blades.
• Minimum Focus Distance: Approximately 24.6 feet (7.5m).
• Weight: Approximately 1078g (lens only) or 1.47kg (system).
• Filter Size:77mm.
• Angle of View: 6 degrees.

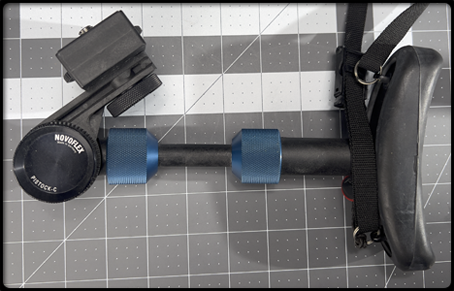

30 • Novoflex Pistock-C Chest Monopod
The Novoflex PISTOCK-C is a versatile, German-engineered chest and shoulder support system designed to stabilize long lenses and video cameras, offering a lightweight alternative to tripods for mobile photographers. It acts as a camera pod to reduce fatigue and vibration, featuring adjustable lengths and configurations, perfect for scenarios where tripods are restricted or impractical.
The unit can be used as a chest support or rotated for shoulder mounting to suit different shooting styles and equipment. It is ideal for birding, wildlife, and field work.
• Dimensions: Approximately 11.4" x 11.8" (29 x 30 cm).
• Weight: ~1 lb (450g).
• Adjustability: Variable length (approx. 11" to 9.5").
• Mounting: Universal plate with 1/4" support screw.
• Material: High-quality construction with rubber base.
• Key Advantage: Allows two or more stops of shutter speed improvement.
31 • Leofoto QS-60 & 70mm Quick Link Set
• Leofoto QS-60 60mm Quick Link Set, Tripod Ball Head Quick Release Mount Set
• Diameter: 60mm Weight:106g Mounting screw/hole: 3/8"
• The combination of a mounting plate for the tripod and an insert plate, which is attached to the tripod head
• The installed plates can be left permanently on the tripod or on the tripod head
• Insert plates can be ordered individually for the use of several tripod heads
