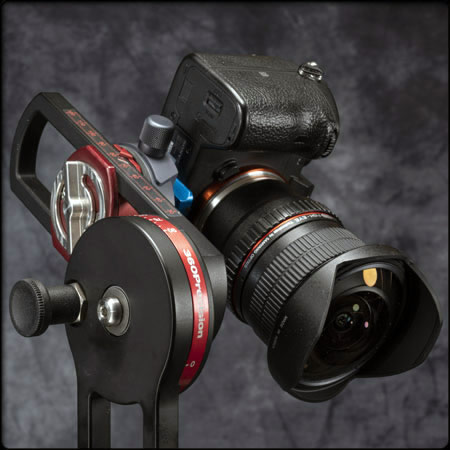

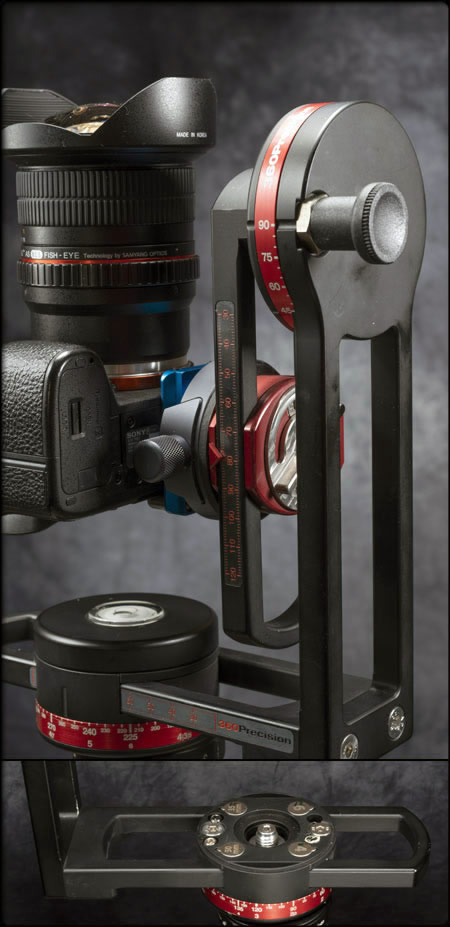

360Precision Adjuste MKII

 A large part of the success of the Precision360 Absolute can be attributed to the accuracy of the set-up and the fact that the settings remain unchanged. The 360Precision Adjuste uses a unique twin locking screw set-up together with a large locking clamp. This design allows a large enough locking force to be applied to the camera slider assembly to guarantee that once you've locked in your settings they're not going to change.



      The same system is used to lock in the position of the elbow slider. The elbow slider is used to align the camera/lens centrally over the base of the Adjuste.
      You also need to be able to accurately, quickly and simply set the camera slider and elbow slider. To help achieve the ease and accuracy of the set-up all sliding parts are coated with a special anodise lubrication.





       • 360precision.pro

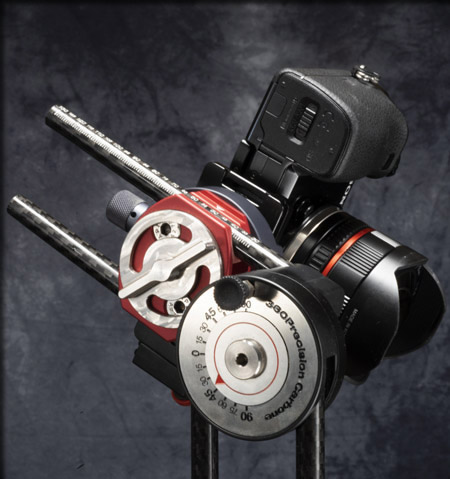

360Precision Carbone Panorama Head

 • Custom weaved 10mm carbon fibre tubes.

      • T6082 high grade alloy. Stronger and lighter than T6061

      • Vapour honed surface finish removes all machine marks.

      • MilSpec type III hard anodised.

      • Twin bearing set-up for smooth and precise detenting.

      • Brass detent rings for long life and great feel.

      • Chemically etched stainless steel scales and marker rings.

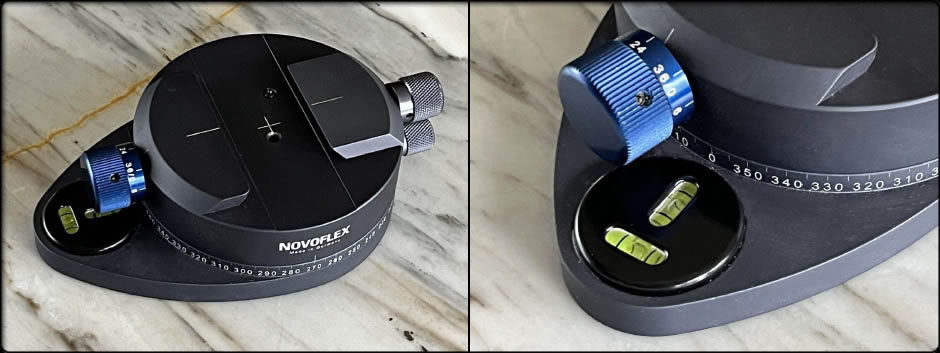

Novoflex Panorama Q Pro

 • Sensitive friction control

    • Weighs 630g

    • 6 stops = 60 degees • 8 stops = 45 degees • 10 stops  = 36 degees • 12 stops = 30 degees

    • 15 stops  = 24 degees • 18 stops  = 20 degees • 24 stops  = 15 degees • 36 stops  = 10 degees

    • 360° Stepless rotation

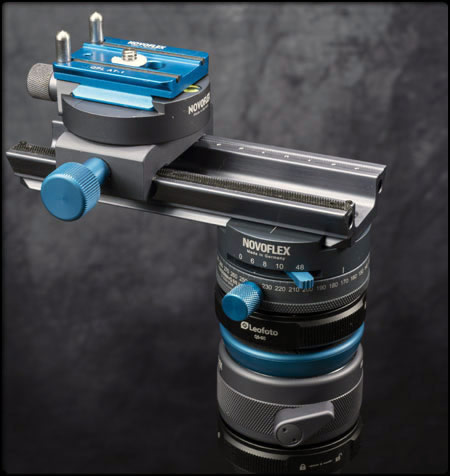

Novoflex Panorama Q48 Panorama Base

 The panorama panning base PANORAMA=Q 48) features a ball-bearing which guarantees a neat and free of play operation, a 360 deg. -laser engraved scaling with 5 deg. increments, a bubble level for exact horizontal levelling, an immersible anti-twist pin, 3/8"-1/4" tripod connection and an integrated quick release unit type Q=MOUNT.



    • High stability with low weight

    • Sensitive friction control

    • 16 stops = 22.5 degees • 30 stops = 12 degees<

    • 36 stops = 10 degees • 48 stops = 7.5 degees

    • 360° Stepless rotation

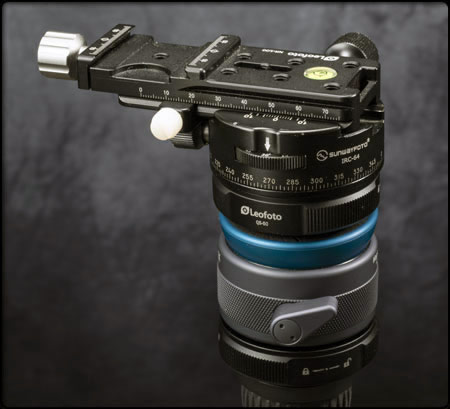

Sunwayfoto IRC-64
Panorama Indexing Rotator Base

 • Rotating built-in degree dial with detent click-stop increments

    • 0, 4, 8, 12, & 24 Positions with Degrees of 0, 15, 30, 45, & 90

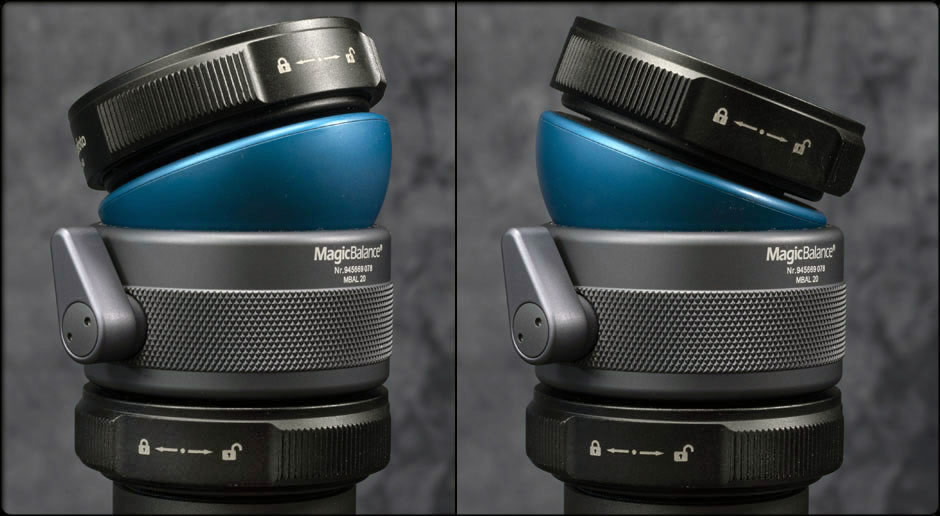

Novoflex MagicBalance 20 Leveling Head

 • Tilts 20° in All Directions

  • Load Capacity: 20 lb

  • Half-Ball in a Socket

  • For Shooting on Uneven Ground

  • Weight: 9.5 oz

  • Base Diameter: 60mm

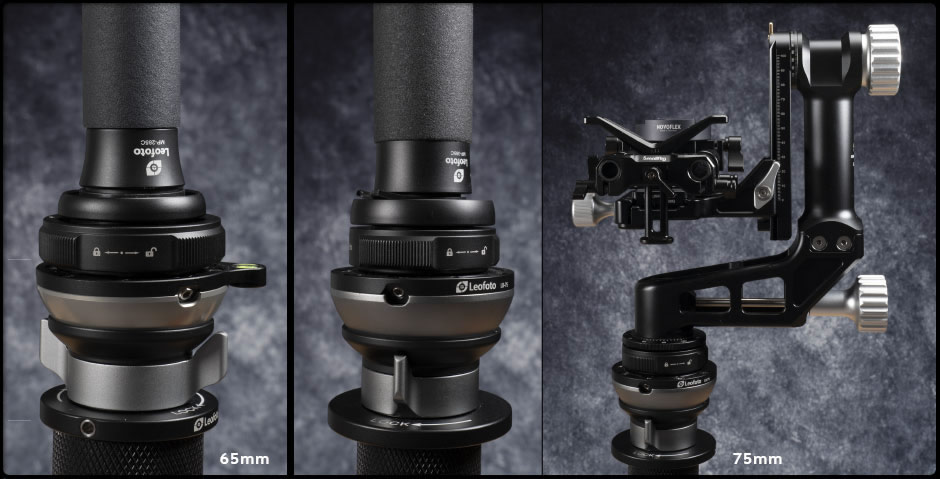

Leofoto LB 65/75 Leveling Base

 • Butterfly Handle

  • +15°/ -15° of Tilt

  • Max load：25 kg / 55lb

  • CNC machined 6061-T6 Aluminum

  • Base Diameter: 75mm


  Leofoto QS-60 60mm Quick Link Set
  • Leofoto QS-60 60mm Quick Link Set, Tripod Ball Head Quick Release Mount Set

  • Diameter: 60mm Weight:106g Mounting screw/hole: 3/8"

  • The combination of a mounting plate for the tripod and an insert plate, which is attached to the tripod head

  • The installed plates can be left permanently on the tripod or on the tripod head

  • Insert plates can be ordered individually for the use of several tripod heads
