Zuiko Olympus Lenses:

Wide Angle • G Zuiko 28mm
Normal • Zuiko 50mm
Telephoto • E Zuiko 100mm

E Zuiko 200mm
Super Telephoto • E Zuiko 600mm

F Zuiko 1000mm
Zoom • Zuiko 70-150mm

• Olympus OM 2 Catalog Olympus OM 4 Catalog

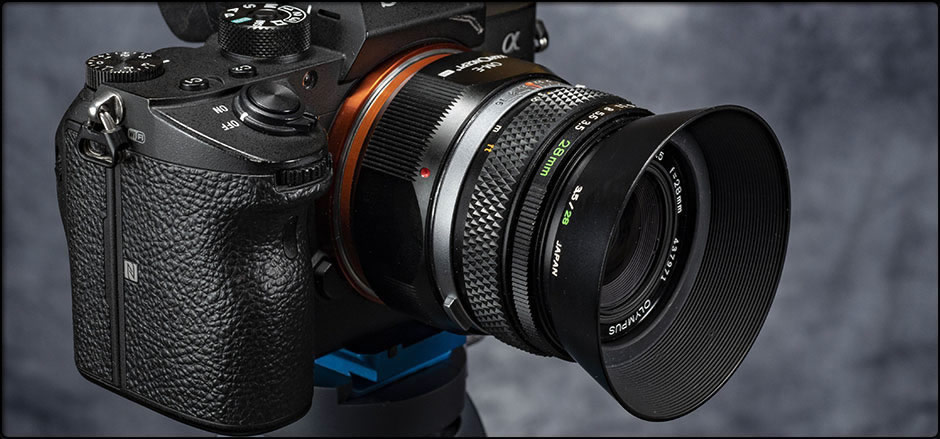

Olympus G Zuiko OM 28mm f3.5

• Focal Length: 28mm • Optical Construction: 6 Elements in 6 Groups • FOV: Diagonal: 75° • Distance Scale: M 0.3 1 ft to infinity OO
• Minimum Range: 18cm x 27cm (7.0" x 10.6") • Aperture Range: f/2.8 - f/22 • Filter Size. 49mm

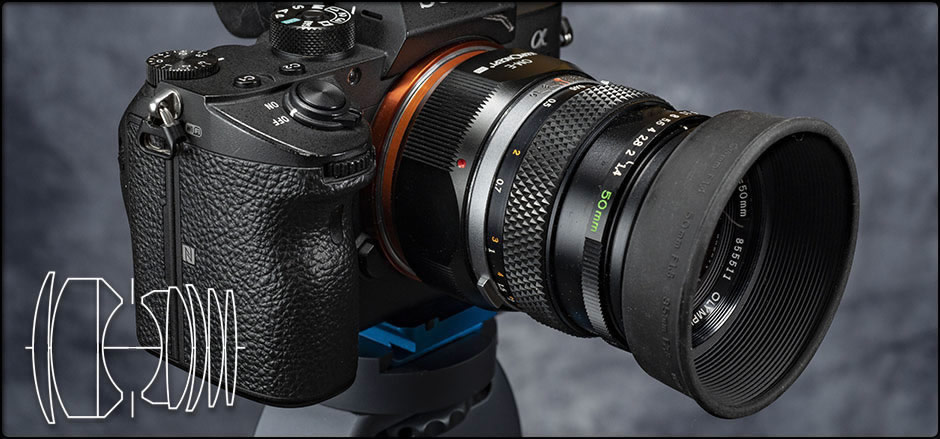

Olympus Zuiko OM 50mm f1.4

• Focal Length: 50mm • Aperture Ratio: 1:1.2 • Lens Construction: 6 Groups, 7 Elements • FOV: Diagonal: 43° • Distance Scale: M 0.45 to infinity oo
• Aperture Range: f/16 ~ f/16 • Minimum Range: 28mm x 16mm • Filter: 49mm • Length x max. diameter: 43mm x 65mm • Lens Hood: Slide on

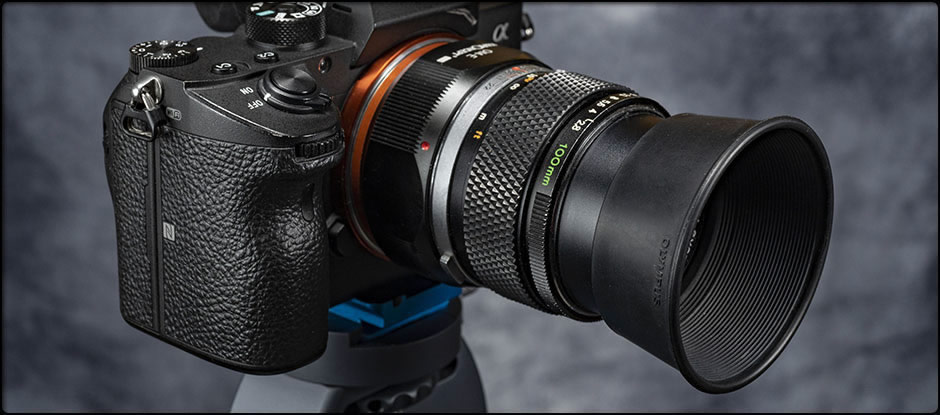

Olympus E Zuiko OM 100mm f2.8

• Focal Length: 100mm • Maximum Aperture: f/2.8 • FOV: 24° • Optical Construction: 5 Elements in 5 Groups • Aperture Range: f/2.8 ~ f/22
• Minimum Focus: 1m • Minimum Range: 19cm x 29cm • Lens Hood: 49mm • Filters: 49mm

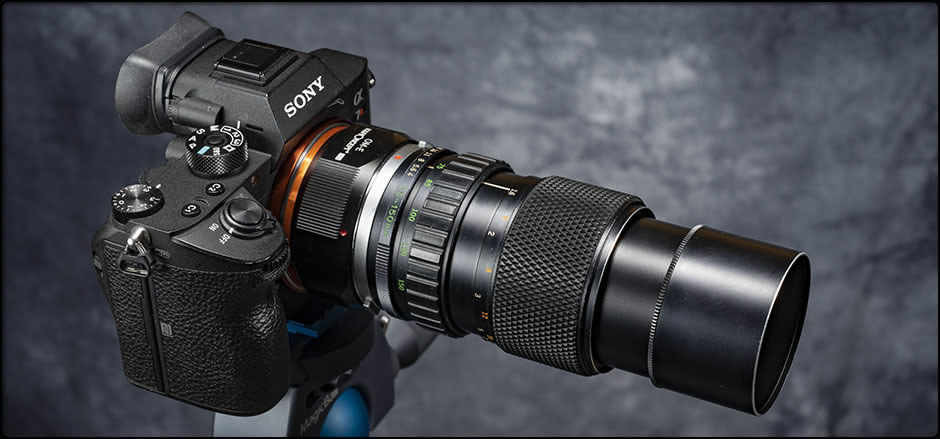

Olympus Zuiko OM 50-150mm f4.0

• Lense Type: Two touch Tele-zoom Design • Focal Length: 75-150mm • Maximum aperture: 1:4.0 • Lens Construction: 15 Elements in 11 Groups
• FOV: 32° f=75mm - 16° f=150mm • Aperture scale: f/4.0~ f/22 • Distance scale: Graduated in meters and feet from 1.6m 5' 2-3/8" to infinity oo
• Focusing: Revolving helicoid system, by turning the focusing ring • Zooming: By rotating movement via the zooming ring locating at the center
• Filter: 49mm • Lens Hood: Built-in • Minimum Photographic range: 64cm x 42cm

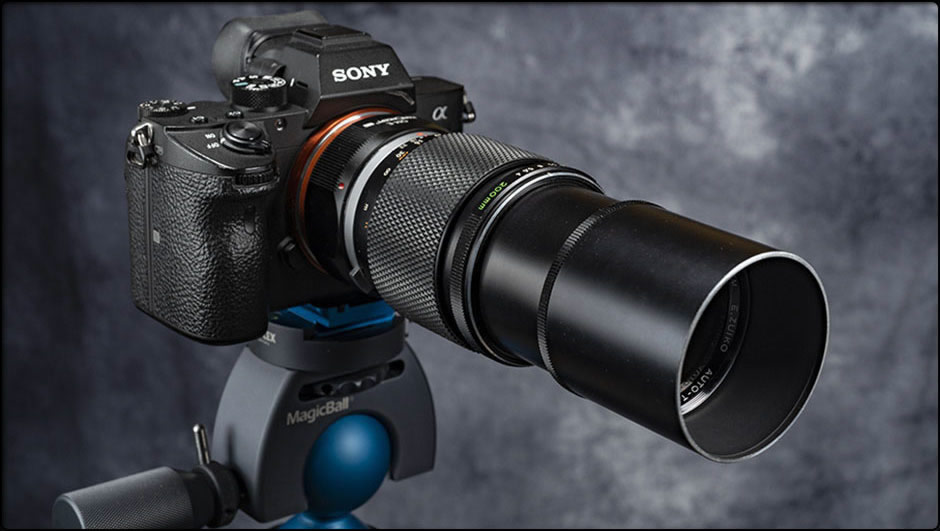

Olympus E Zuiko OM 200mm f4.0

• Optical Construction: 5 Elements in 4 Groups • FOV: Diagonal: 12° • Distance Scales: 2.5m 8' 2-3/8" to infinity OO • Aperture Range: f/32 ~ f/4.0
• Minimum Range: 24cm x 36cm • Lens Hood: Built-in • Filter: 55mm

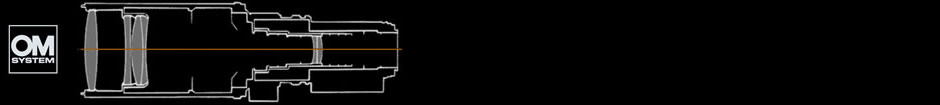

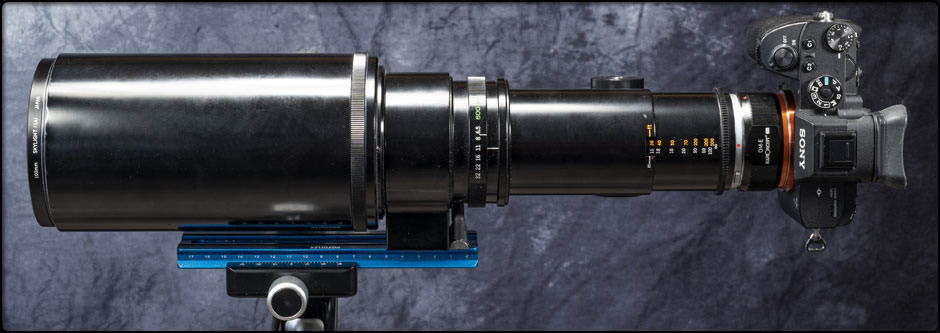

Olympus F Zuiko OM 600mm f6.5

• Focal Length: 600mm • Aperture Ratio: 1:6.5 • Optical Construction: 4 Groups, 6 Elements • FOV: 4° • Distance Scale: 36.1ft to infinity OO
• Focusing: Rack and Pinion • Minimum & Maximum aperture: f/32 - f/6.5 • Minimum Range: 55cm x 37cm
• Filter: 100mm • Length: 377mm • Lens Hood: Built-in

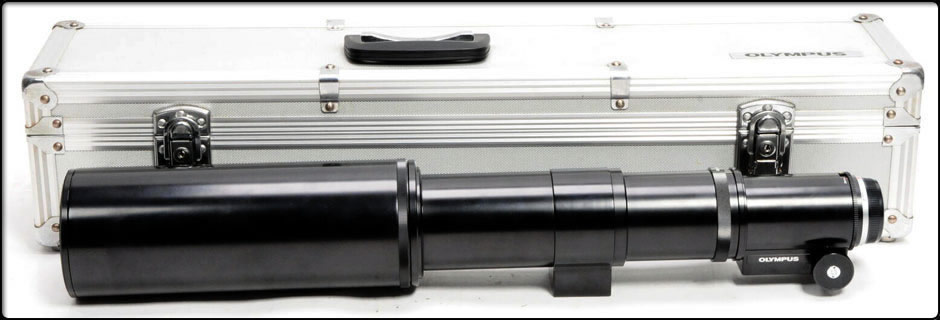

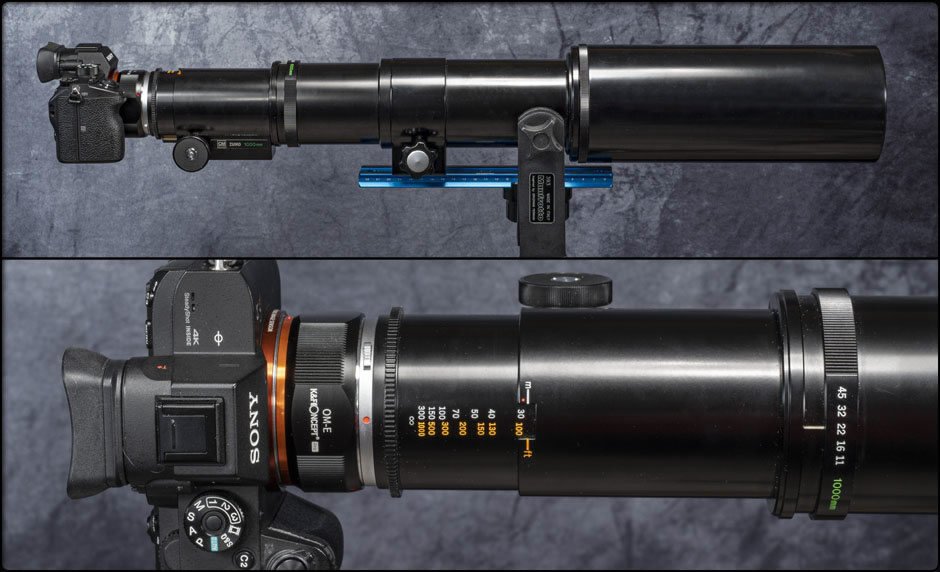

Olympus E Zuiko OM 1000mm MC f11.0

• Optical Construction: 5 Elements in 5 Groups • Maximum and Minimum Aperture: f/11 ~ f/45 • FOV: 2.5° 10' • Aperture Range: f/11 ~ f/45
• Distance Scales:: 30m 98' 5" to infinity oo • Minimum Range: 65cm x 98cm 25.6" x 38.6" • Focusing: Rack and Pinion
• Filter: 100mm • Lens Hood: Built-in • Length: 662mm 26" • Weight: 4,000g 8 Ibs 13 oz.
