360icon FotoGear | Macro Lenses

FotoGear Macro Lenses


Normal • Nikkor 55mm Nikkor AIs 55mm Canon FD 55mm Takumar Preset 1:1 Takumar 50mm
Telephoto • Nikkor 105mm Nikkor 200mm Takumar 100mm Laowa 100mm 2x
Reflex • Nikkor Reflex N 500mm Sigma Reflex 600mm
Zoom • Nikkor 35-105mm Vivitar 100-500 Soligor 100-300


Venus Laowa 2x 100mm f2.8 Sony E

• Production Year: 2021 • Field of View: 39.6° • Minimum Focus: 13.77" • f2.8-16 • Filter: 40.5mm • 49mm Ihagee Hood • m42 Mount
Top of Page

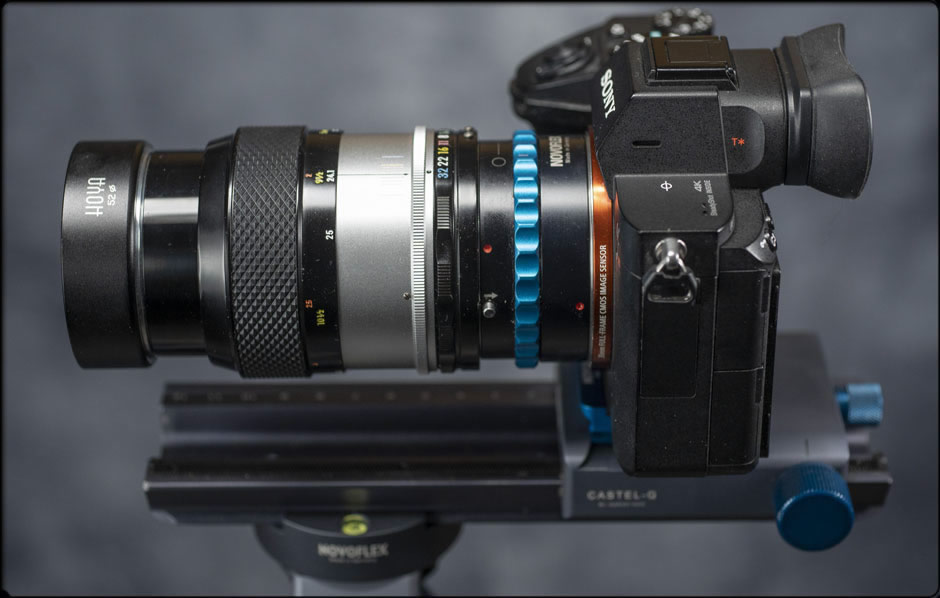

Nikkor Micro AI 55mm f2.8 F

• Production Year: Early 1979 • FOV 43°, 6 Elements in 5 Groups • Filter ∅ 52mm • Rubber covered focusing ring
• Distance scale graduated in meters and feet from 0.25m (9.86 in.) to infinity (∞) • Close-range correction system (CRC) to 1:2 • Close-up Distance Scale marked «PK»
• Cross ribbed aperture setting ring, AIS coupled • Aperture Scale f/2.8 to f/32, 7 iris blades • Bayonet fixed by 3 cross-head screws
• Dimensions approx. 63.5mm ∅ x 62mm • Weight approx. 290g • Nikon 52mm snap-on front lens cap • Nikon PK-13 Auto Extension Ring
Top of Page

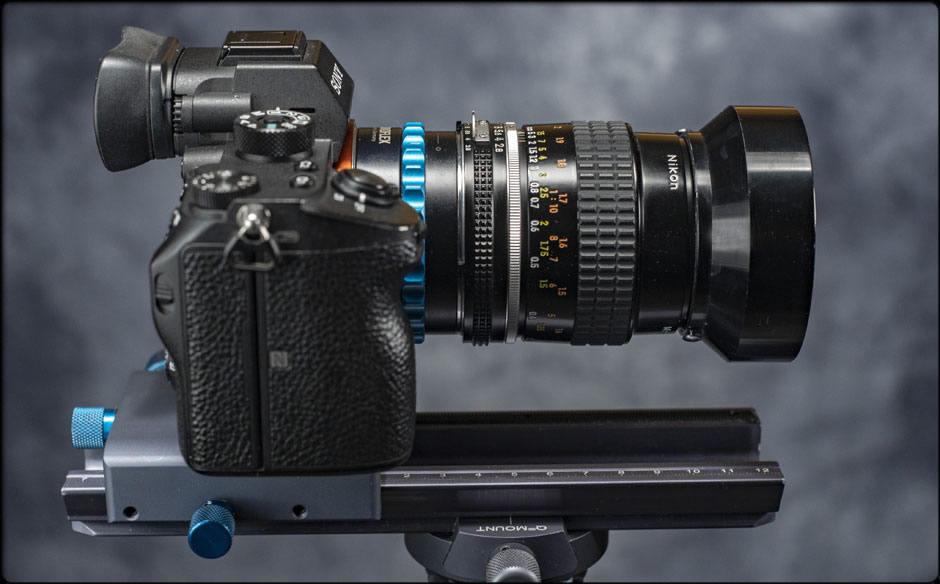

Nikkor Micro AIS 55mm f2.8 F

• Production Year: 1979 • 223rd Lens Produced • FOV 43°, 6 Elements in 5 Groups • Filter ∅ 52mm • Rubber covered focusing ring
• Distance scale graduated in meters and feet from 0.25m (9.86 in.) to infinity (∞) • Close-range correction system (CRC) to 1:2
• Close-up Distance Scale marked «PK» • Cross ribbed aperture setting ring, AIS coupled • Aperture Scale f/2.8 to f/32, 7 iris blades
• Bayonet fixed by 3 cross-head screws • Dimensions approx. 63.5mm ∅ x 62mm • Weight approx. 290g
• Nikon 52mm snap-on front lens cap • Nikon PK-13 Auto Extension Ring
Top of Page


Canon Macro 55mm f3.5 FD

• Production Year: 1965 • Field of View: 47° • Minimum Focus: 8.26" • f4.0-22 • Takumar 49mm Hood
Top of Page




Takumar Macro 1:1 Preset 50mm f4.0 m42

• Production Year: 1965 • Field of View: 47° • Minimum Focus: 8.26" • f4.0-22 • Takumar 49mm Hood
Top of Page




Takumar Macro 50mm f4.0 m42

• Production Year: 1971 • Field of View: 24° • Minimum Focus: 9.05" • f4.0-22 • Takumar 49mm Hood
Top of Page




Takumar Macro 100mm f4.0 m42

• Production Year: 1972 • Field of View: 24° • Minimum Focus: 17.71" • f4.0-22 • Takumar 100mm Hood
Top of Page

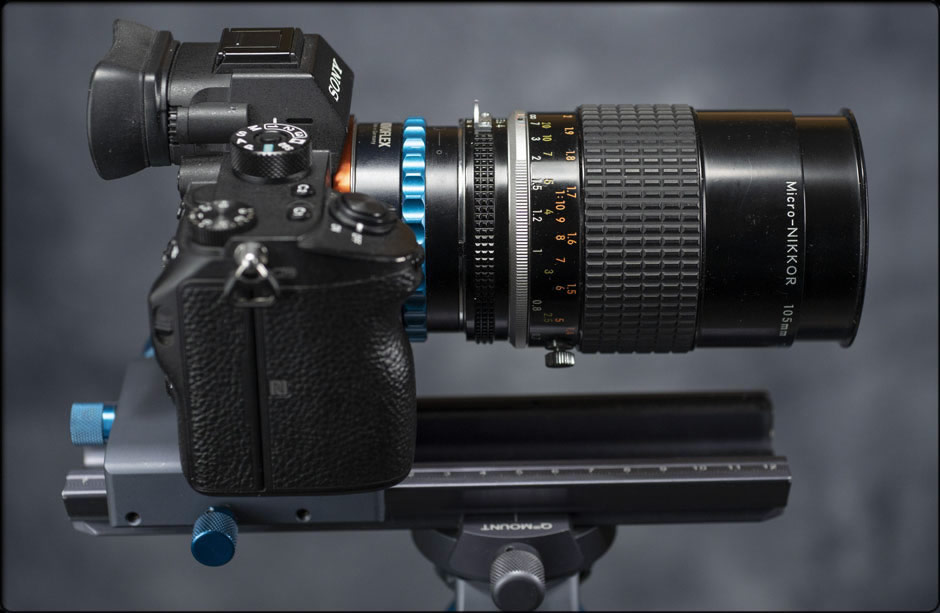

Nikkor Micro AIs 105mm f4.0 F

• Production Year: 1982 • 5 Elements in 3 Groups • FOV 23°20′ • Filter ∅ 52mm • Built-in retractable Lens Hood • Rubber focusing ring
• Distance scale graduated in meters and feet from 0.47m (1.55 ft.) to infinity (∞) • Close-up Distance Scale marked PN
• Aperture Scale f/4 to f/32, 7 iris blades • Bayonet fixed by 3 cross-head screws • Dimensions approx. 68.5mm ∅ x 104mm
• Weight approx. 500g • Nikon 52mm snap-on front lens cap • Nikon LF-1 rear lens cap • Nikon PN-11 Auto Extension Ring
Top of Page

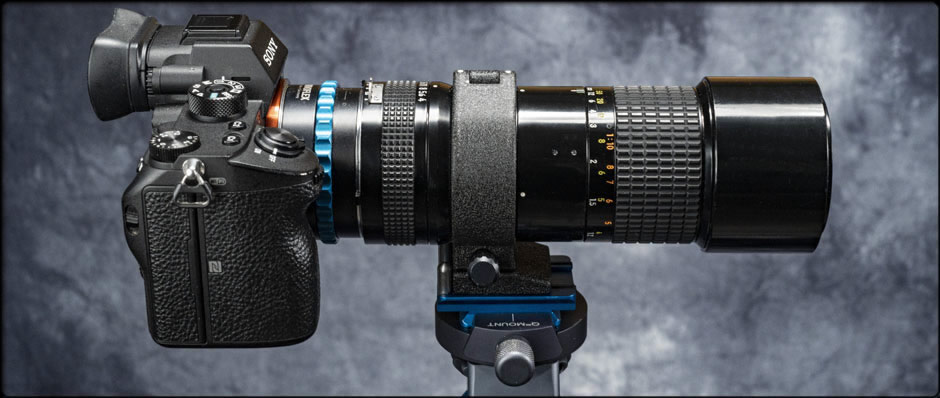

Nikkor Micro AI 200mm f4.0 F

• Production Year: 1978 • 225th Lens Produced • 9 Elements in 6 Groups • FOV 12°20′ • Filter ∅ 52mm • built-in retractable Lens Hood
• rubber focusing ring • Distance Scale graduated in meters and feet from 0.71m (2.34 ft.) to infinity (∞) • narrow rotating tripod collar
•
wide aperture ring, AI coupled • Aperture Scale f/4 to f/32, 9 iris blades • Bayonet fixed by 5 cross-head screws
•
Dimensions approx. 67mm ∅ x 180mm • Weight approx. 740g • Nikon 52mm snap-on front lens cap
Top of Page

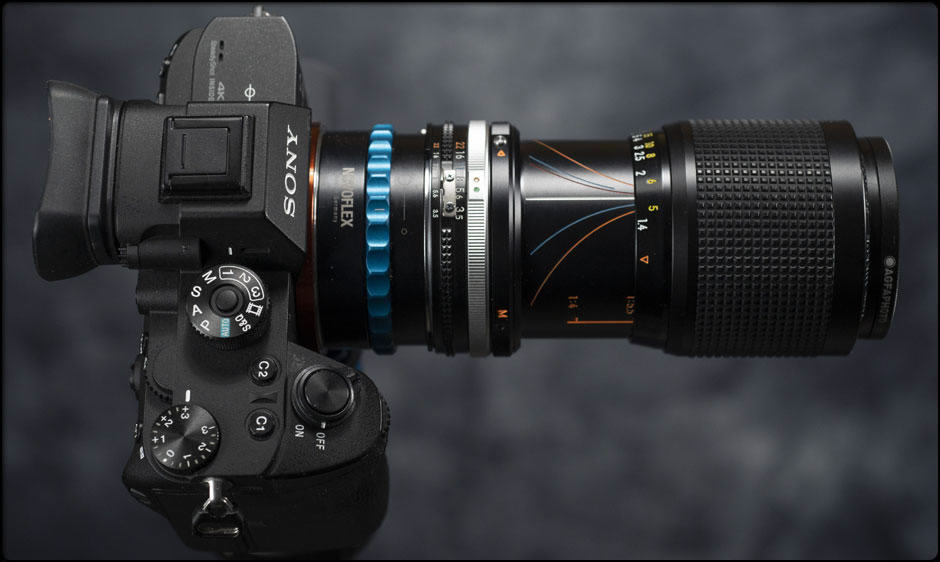

Nikkor Macro Zoom AIs 35mm to 105mm f3.5/f4.5 Macro F

• Focal length/Aperture: 35 -105mm f/3.5~4.5s • Lens Coupling: Ai-S • Lens Construction: 16 Elements in 12 Groups • FOV: 62° - 23°20' • Diaphragm: Automatic
• Aperture Scale: f/3.5 ~ f/22 on both standard and aperture-direct-readout scale (note: at f/4.0 only a click stop is provided).
• Reproduction Ratio: 1:4 life-size at 0.27m (10.6") at 35mm focal length • Focal Length markings: 35mm(green), 50mm (white) and 70mm(orange).
• Depth of Field Scales: Orange for f/22 and Blue for f/11 • Attachment size: 52mm (P = 0.75); Weight: 510g • Dimensions: 64mm dia. x 86.5mm long
• Filters:52mm front screw-in; • Lens hood: HK-11
Top of Page


Vivitar Series 1 Zoom Macro 100-500mm f5.6 Nikon F

• Production Year: XXXX° • Field of View: 54.4° • Minimum Focus: 7.08" • f2.8-22 • Filter: 49mm • 49mm Flektogon Wide
Top of Page


Soligor Macro Zoom 100-300mm f5.0 Nikon F

• Production Year: XXXX° • Field of View: 54.4° • Minimum Focus: 7.08" • f2.8-22 • Filter: 49mm • 49mm Flektogon Wide
Top of Page

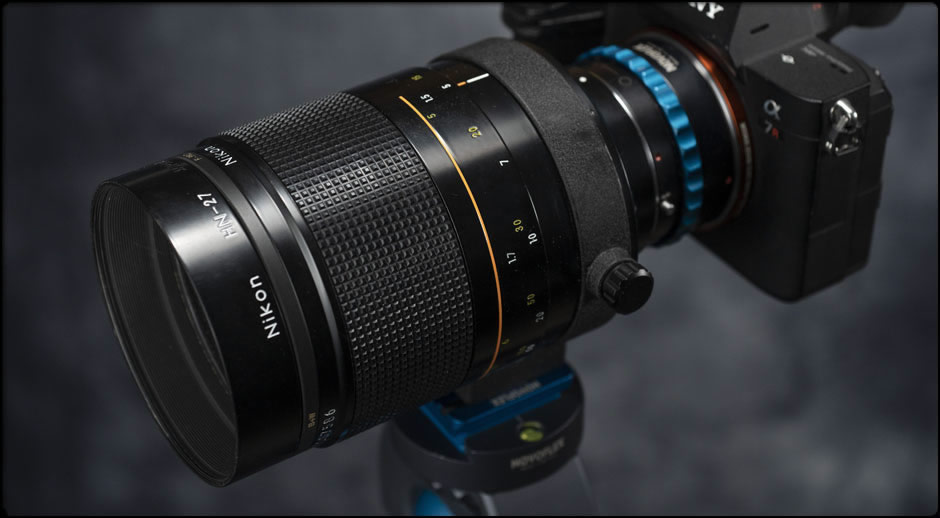

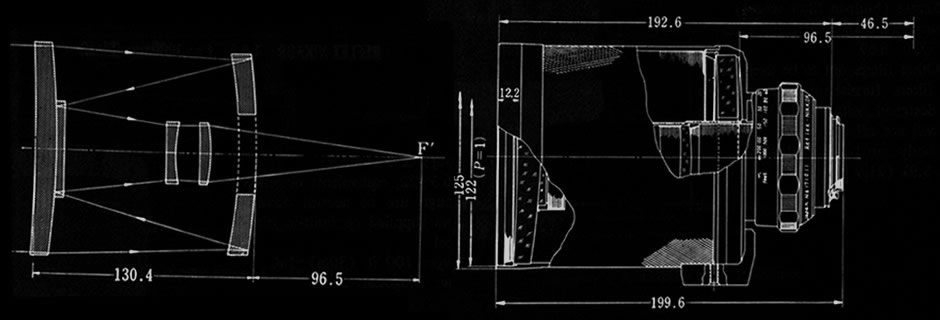

Nikkor Macro Reflex 500mm f8.0 F

• Production Year: 1973 • 5 Elements in 3 Groups, FOV 5° • Filter ∅ 88mm • Distance scale graduated in meters and feet from 4m (13 ft) to infinity (∞)
• Built in tripod mount • 90° rotating Bayonet mount, no Bayonet screws • Dimensions approx. 93 ∅ x 142 mm • Weight approx. 1000g
• 88mm screw-in Lens Hood, no engraving • Nikon 39mm L37 screw-in filter • Nikon 91mm slip-on leather front cap • Nikon CL-23 lens case, black leather
Top of Page


Sigma Macro Reflex 600mm f8.0 MD

• Production Year: XXXX° • Field of View: 54.4° • Minimum Focus: 7.08" • f2.8-22 • Filter: 49mm • 49mm Flektogon Wide
Top of Page
