FotoGearFotoMacrography

• Novoflex Focusing Racks GH-PRO II+ Geared Head SmallRig Mini Focus
• Cognisys StackShot Macro Rail Extreme FotoMacrography Rig
• Bogen Light Modulator + Accessories 1978 Bogen MacroLux
Bellows:
• Noflexar 105mm Bellows Pentax Bellows I & II - Takumar 100mm Lens Pentax CopiPod
• Exakta Helicoid Novoflex Exakta Bellows Ihagee Vielzweck 1953

• Novoflex Catalog 1971 Novoflex Macro Catalog Cognisys StackShot Manual Ihagee Vielzweck Manual


    Novoflex Castel Q Focusing Rack Arca
    With dual gearing and the integrated Q=Base Arca-Swiss type quick release system, the Novoflex Castel-Q Focusing Rack is an invaluable tool for any macro photographer. 5.5" of total movement is available, and the entire assembly can be attached to either a conventional tripod head or an Arca-Swiss compatible quick release clamp (made by Arca-Swiss, Foba, NPC, Gitzo & others).
    Dual gearing for quick or precision movement in the macro range.

    Novoflex Castel Q Mini Focusing Rack  Mini
    • Lightweight for easy transport .6 lbs

    • Max travel distance of the sliding block: 3.9”

    • Adjustment range One complete rotation of the drive wheel: 15mm (0.6”)

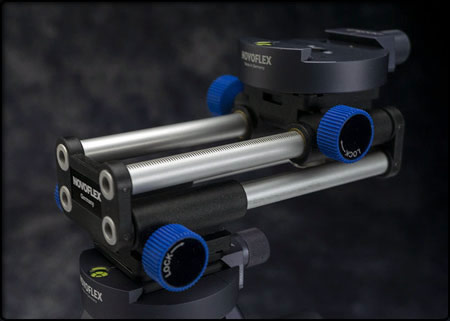

    Novoflex Castel Focusing Rack Mini   P013m
    • Maximum Movement 5.3" (134mm)

    • 5.1 x 3.2 x 2.2" (LxWxH)

    •  Weight 0.63 lb (286 g)

    With a dual locking geared system, the Novoflex Focusing Rack is an invaluable tool for any macro photographer. 5.3" of total movement is available, and the entire system is small and lightweight enough to accompany the photographer everywhere. Due to the two focus drives, it is possible to have total movement more than the length of the device.

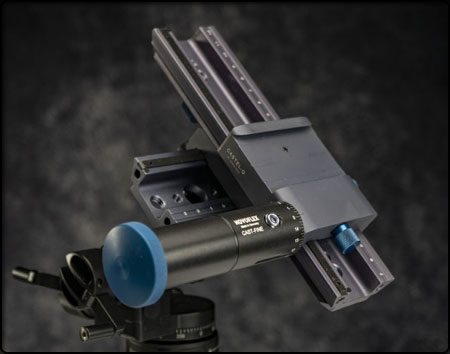

    Novoflex Castel Fine Focus Adjustment   Handle
    The Fine Adjustment Handle for Castel by Novoflex is an extension handle for fine focus adjustment of the Castel-Q, XQ-II, and Mini II focusing racks. The Castel focusing racks are used in macro and stereo photography to ensure correct framing and the sharpest focus possible. The extension handle not only offers smooth control of the fine focus, but brings the hand away from the rack and the camera, helping to eliminate accidental bumps and providing better motor control of your hand as it adjusts the focus.

SunwayFoto GH-PRO II+ Geared Head

 GH-PRO II+ Parameters:

     • Clamp type: panoramic geared clamp GC-01

    • Material: T6061 aluminum

    • Dimensions: 140mm*85mm*131mm

    • Net weight: 731g

    • Weight: 4kg

    • Base diameter: 56mm

    • Horizontal movement angle: 0~360°

    • Left and right movement angle: 0~80°

    • Front and back movement angle: 0~170°

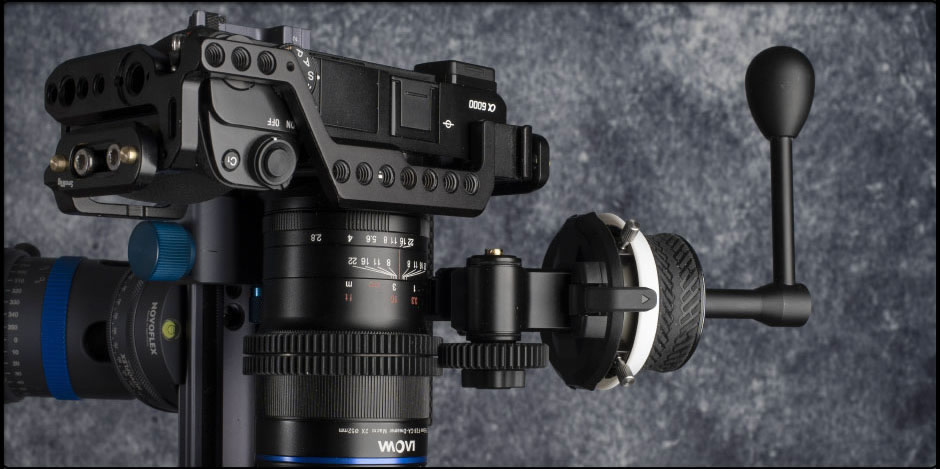

SmallRig Mini Follow Focus

 • Adjustable AB Hard Stops

• Adjustable Focus Gear Ring, 0.8 MOD Gear

• Interchangeable Gears & Focus Gear Rings

• Anti-Slip Focus Knob


Tilta  Seamless Focus Gear   Rings
Tilta's  Seamless Focus Gear Ring allows you to add 0.8 MOD gears to a compatible lens for use with cine follow focuses. The sizes fits virtually all lenses of the same outer diameter. The seamless version is designed with an improvement over Tilta's earlier gear rings in that it's fully closed and requires no screws in order to be secured to the lens. As a result, it attaches to the lens more easily and provides evenly distributed pressure while ensuring zero drifting and accurate focus. It's made of durable, flexible rubber, attaches firmly, and works silent and smooth along 360° of rotation. There are 14 different sizes to choose from for different lenses.

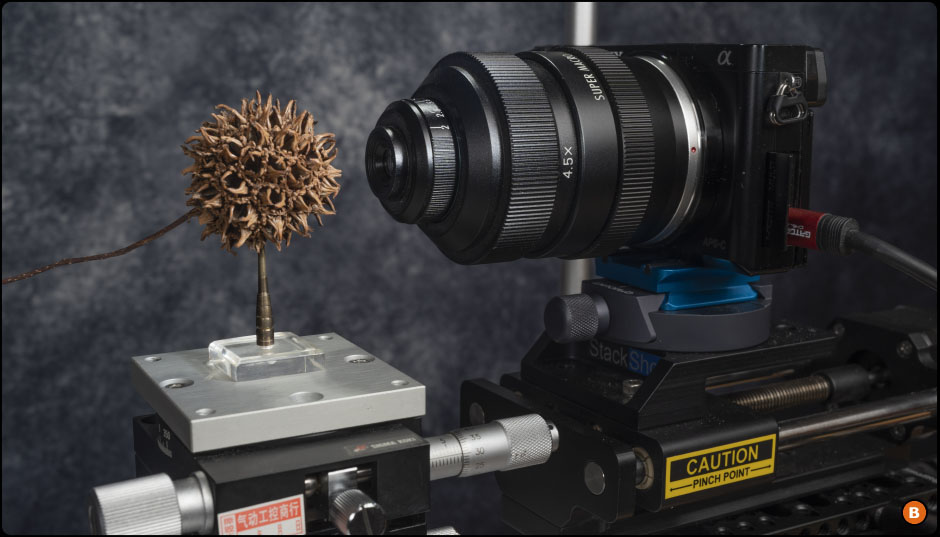

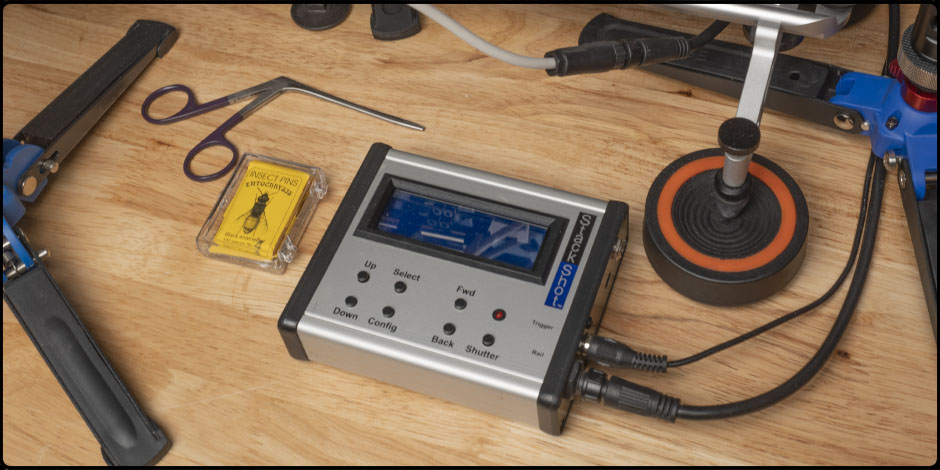

Cognisys StackShot Macro Rail

 This package includes everything you will need to automate the image collection process for focus stacking just add the camera specific shutter cable. The shutter cable is the communication link between the camera and StackShot. It allows the StackShot controller to control your camera to make the image capturing process completely automated. The shutter cable is required if using StackShot stand alone (with no computer) or with Zerene Stacker. No shutter cable is required if used with Helicon Remote.



 •  Cognisys StackShot Manual

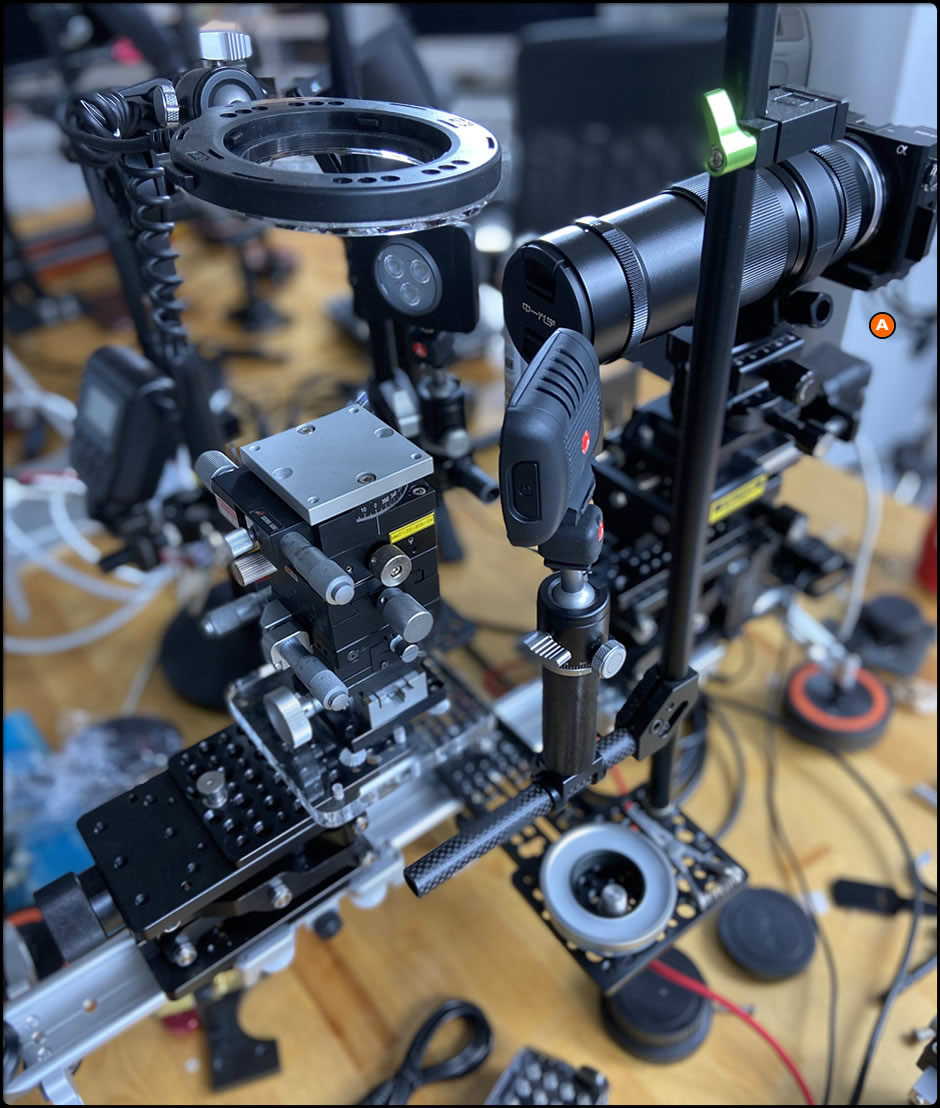

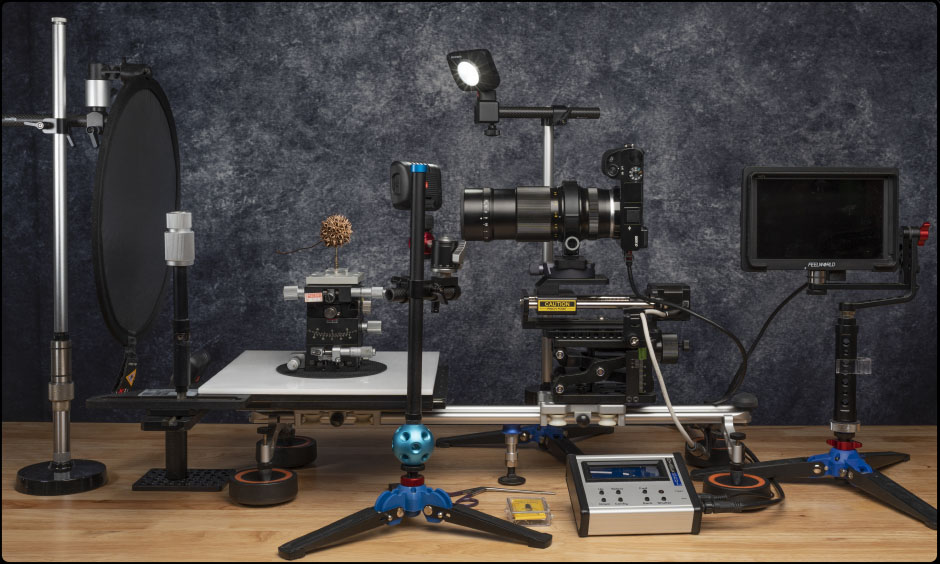

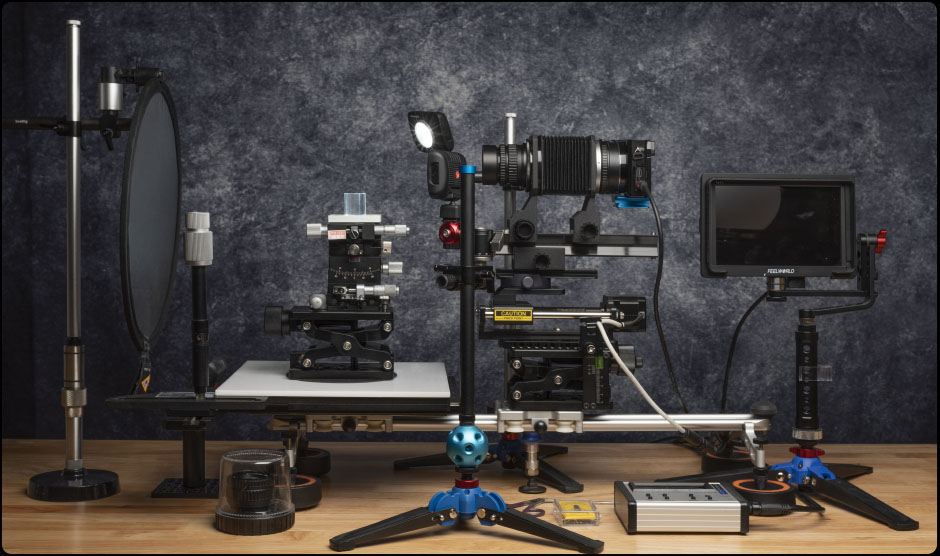

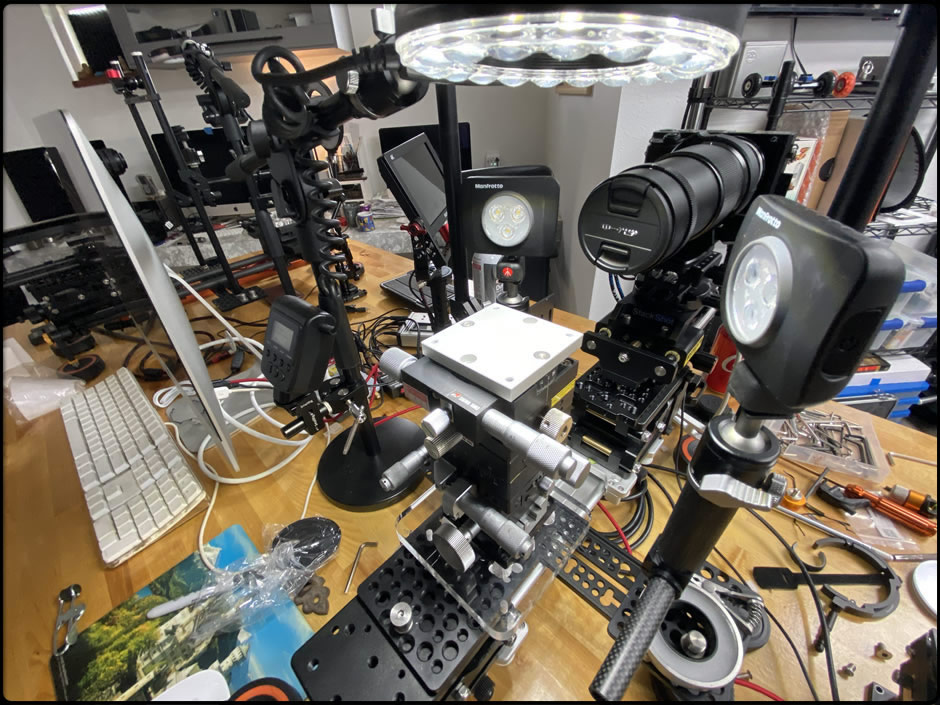

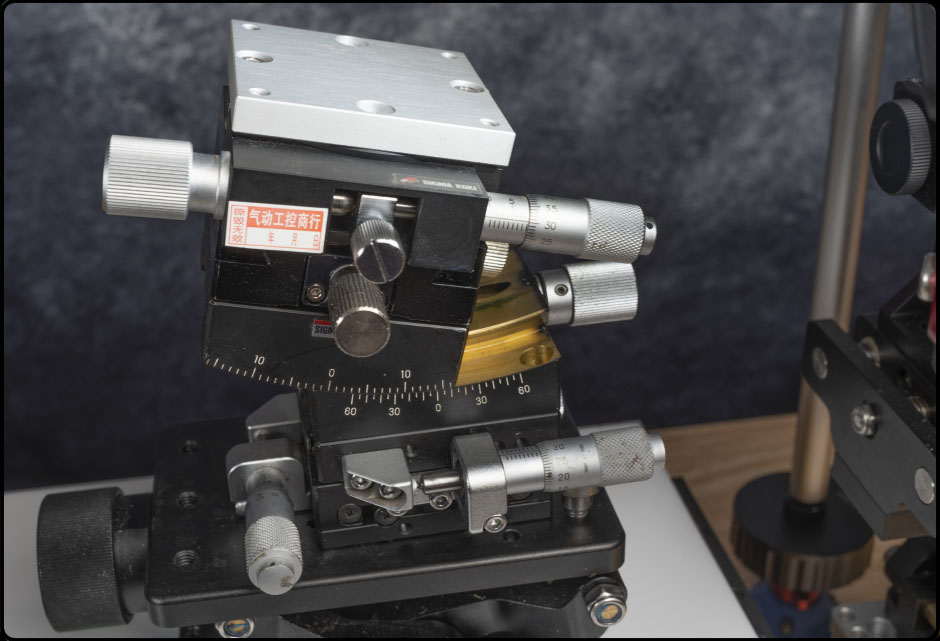

Extreme FotoMacrography DIY Project

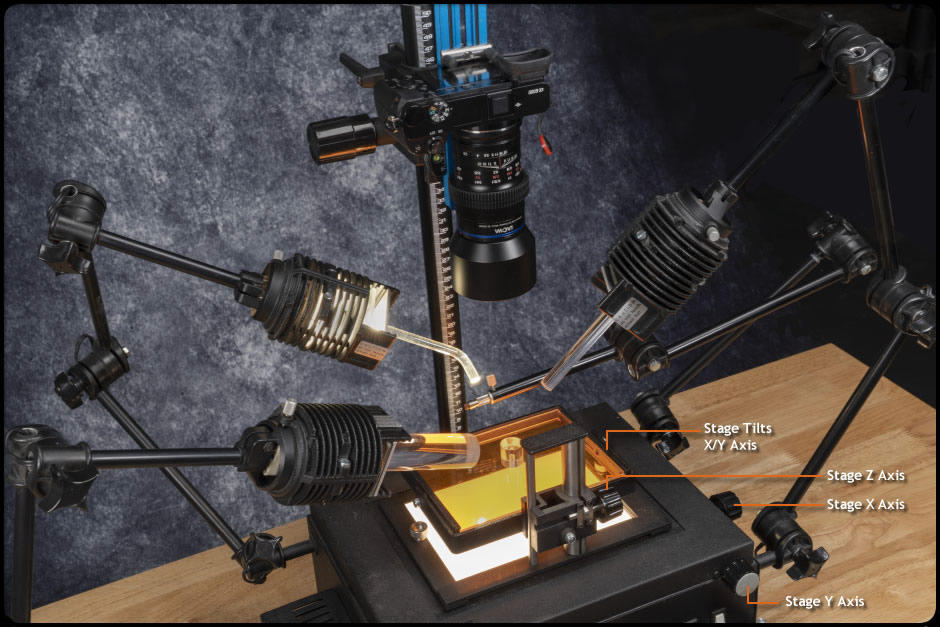

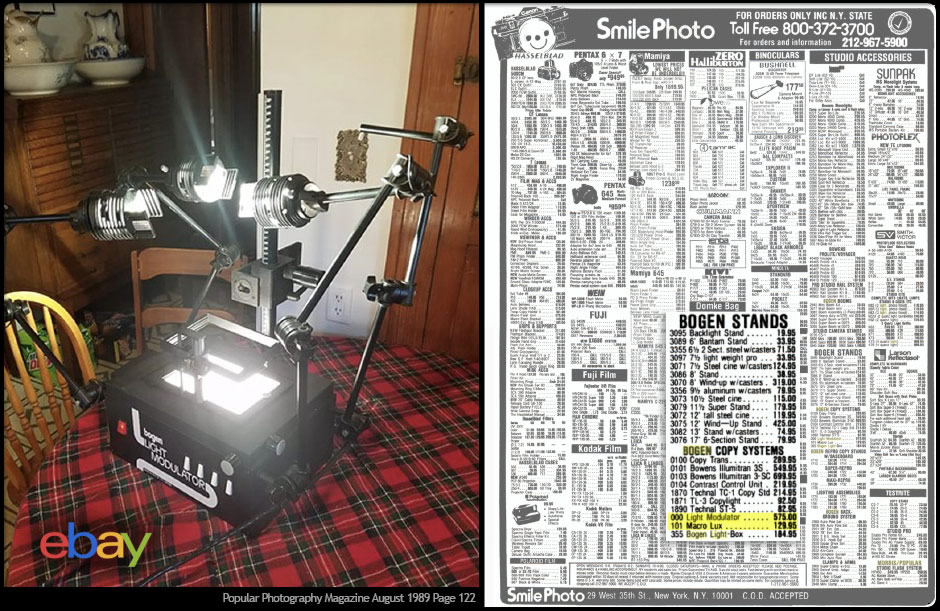

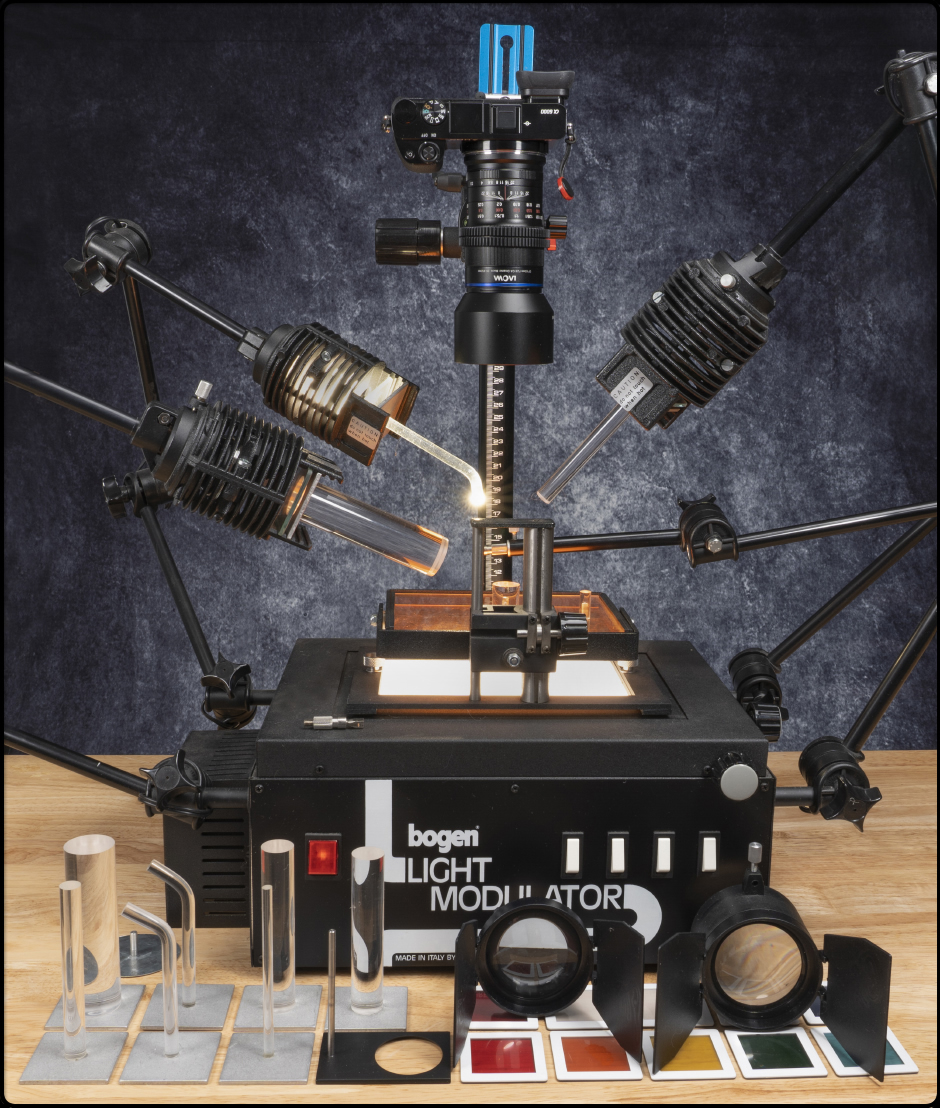

Bogen Light Modulator + Accessories

• Rare

 •  Bogen 2006 12mm Bent Light Pipe

• Bogen 2003 6mm Light Pipe

• Bogen 2007 12mm Light Pipe

• Bogen 2008 20mm Light Pipe

• Bogen 2010 30mm Light Pipe

• Bogen 2025 Small Specimen Clamps and Acrylic Stage Pedestals

• Bogen 2016 Light Diffusers

• Bogen 2020 Colored Filter Kit for Lamps

•  Bogen 2012 Polaring Filter

•  Bogen 2002 60mm Wide Flood Lens with Barndoors

•  Bogen 2001 60mm Spot Lens with Barndoors

•  Bogen Acrylic Light Diffusers

•  Bogen 2050 1/8" Acrylic Filters for StageM - Black, Orange Red, Yellow, Blue & Green

•  2036 Set of 7 Colored Base Light Gels RGBGOP

•  Bogen 2056 Stage Insert With Pin

 • Made in Italy 1980s



• New York Times -  April 1986:

For lighting a small, three-dimensional object, a useful device is the Bogen Light Modulator System, which operates as a sort of super mini-studio for this kind of work. The device, which is somewhat bigger than a breadbox, looks rather like a spidery creature out of a science-fiction movie and is designed to be used with tungsten-balanced films such as Ektachrome 50 Professional. This unit allows for easy 360-degree lighting of an object. Instead of electronic flash, it uses three 50-watt quartz halogen lamps, each of which is attached to the end of a jointed, lockable arm. On the fourth arm are reflecting mirrors. There is a small, movable glass stage on which to place the object being photographed. Each lamp accepts a variety of accessories, such as diffusers, color or polarizing filters, and special-effect lenses.

The Light Modulator lists for $600, with accessories running from $3.50 to $80 1986

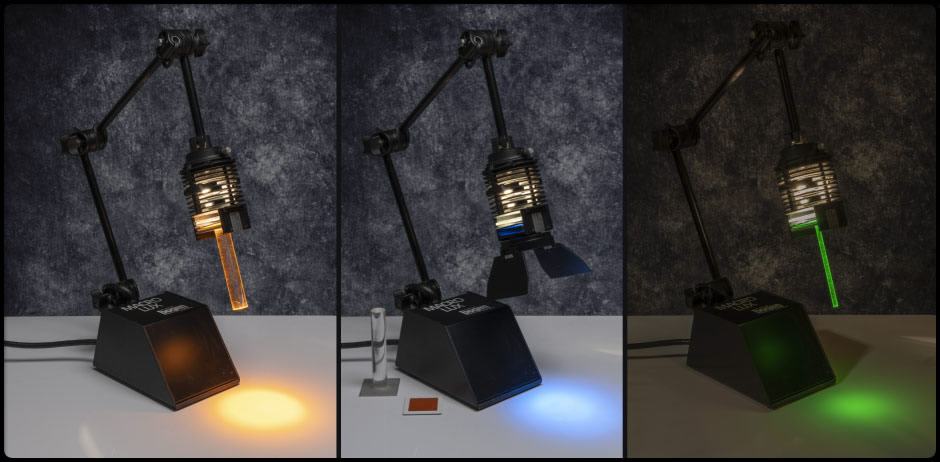

Bogen MacroLux Light Source

Ihagee Vielzweck Exakta 1953 • Solar Anastigmat 90mm f4.5 Bellows Lens

• Ihagee Vielzweck Manual

Novoflex • Exakta Macro Bellows • Nagel Stuttgart Anastigmat 90mm f4.5

• Novoflex Castel Base

Exakta Helicoid • Nagel Stuttgart Anastigmat 90mm f4.5 Bellow Lens

 •  +20mm +15mm Tubes

 •  Novoflex Castel Base

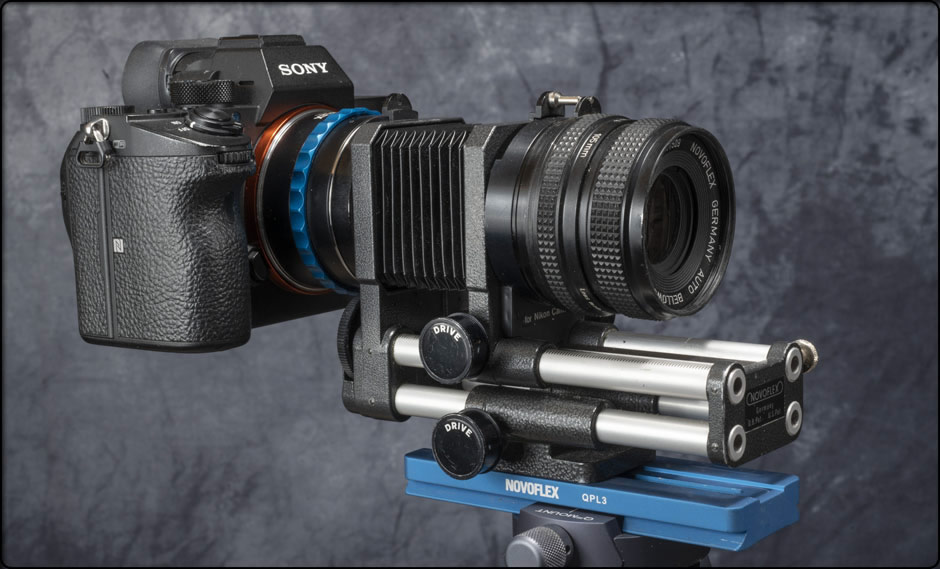

Novoflex Bellows Nikon AI mount • Novoflex Noflexar 105mm f4.0 Bellows Lens

Pentax Bellows IIa • Takumar Macro 100mm f4.0 Bellow Lens

Pentax Bellows II • Takumar Macro 100mm f4.0 Bellow Lens

Pentax Bellows II Manual

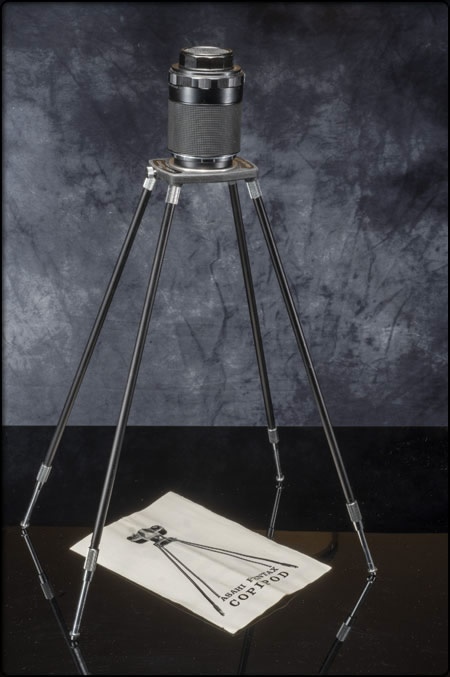

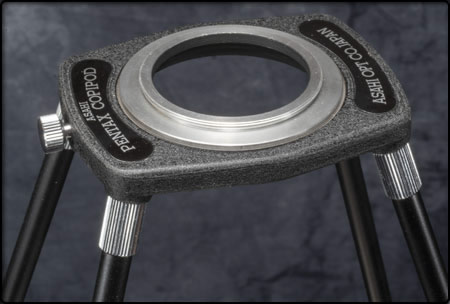

  Asahi Pentax CopiPod
  • Carry Case Case

  • 49mm Threaded Ring

  • 58mm Threaded Ring

  • Adjustable Legs

  • Height 13.5" - 20"

  • Modified Leg Set - Height 6- 12"
